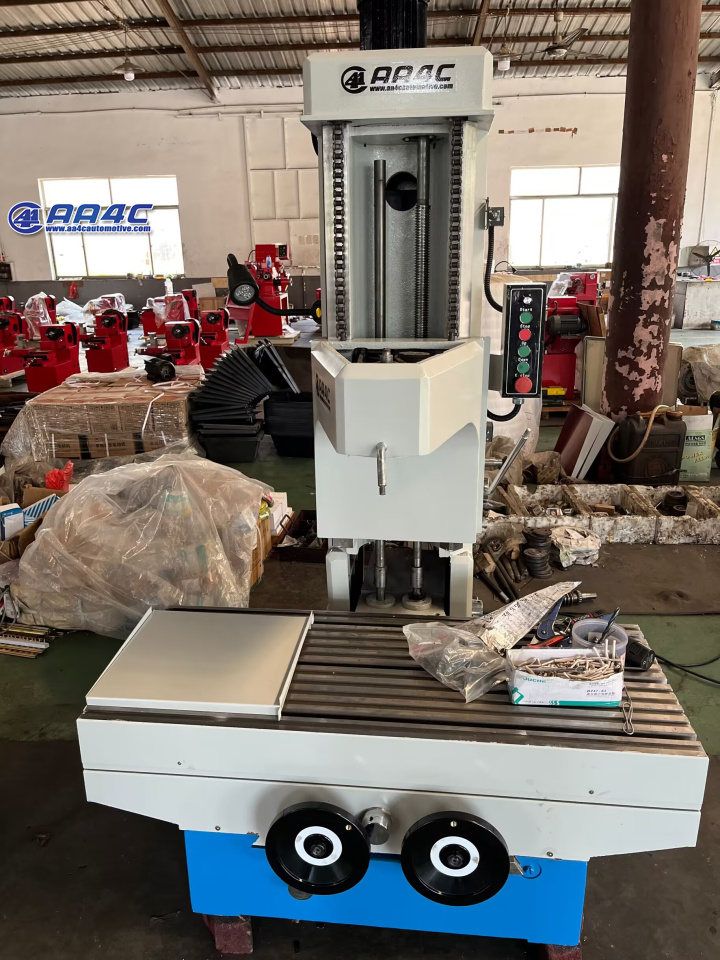

Cylinder Boring Machine T8018A/T8018B

  • T8018A/T8018B
  • Cylinder Boring Machine T8018A/T8018B

Description

TB8018A/TB8018B

Vertical Boring Machine

The machine is mainly used for boring the cylinder hole of internal combustion engine and the inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.T8018A is a mechatronics driven and spindle speed frequence changed speed variation.T8018B is a mechani-cally-driven.

Main specifications

Model

T8018A

T8018B

Range of boring diameter

Φ30-Φ180 mm

Max. boring depth

450 mm

The rotational speed of spindle

140-610 r/min

175,230,300,350,460,600 r/min

Spindle feed

0.05,0.10,0.20 mm

Spindle travel

500 mm/r

The high rising speed of spindle

2.65 m/min

The distance from the central line of the spindle to the body

320 mm

Table size

1200×500 mm

Table travel

Crosswise

100 mm

Lengthwise

800 mm

Rapid travel of guide slide

2800 mm/min

Machine power

Main motor

3 Kw

2.4/ 3 Kw

Motor for quick-moving

0.75 Kw

Overall dimensions(L×W×X)

2000×1235×1920 mm

Packing dimensions(L×W×X)

1400×1400×2250 mm

N.W./G.W.

2000/2200 kg

Accessories
