Car Spraybooth Electrical heating AA-SB01

  • AA-SB01
  • Spraybooth Electrical heating AA-SB01

Description

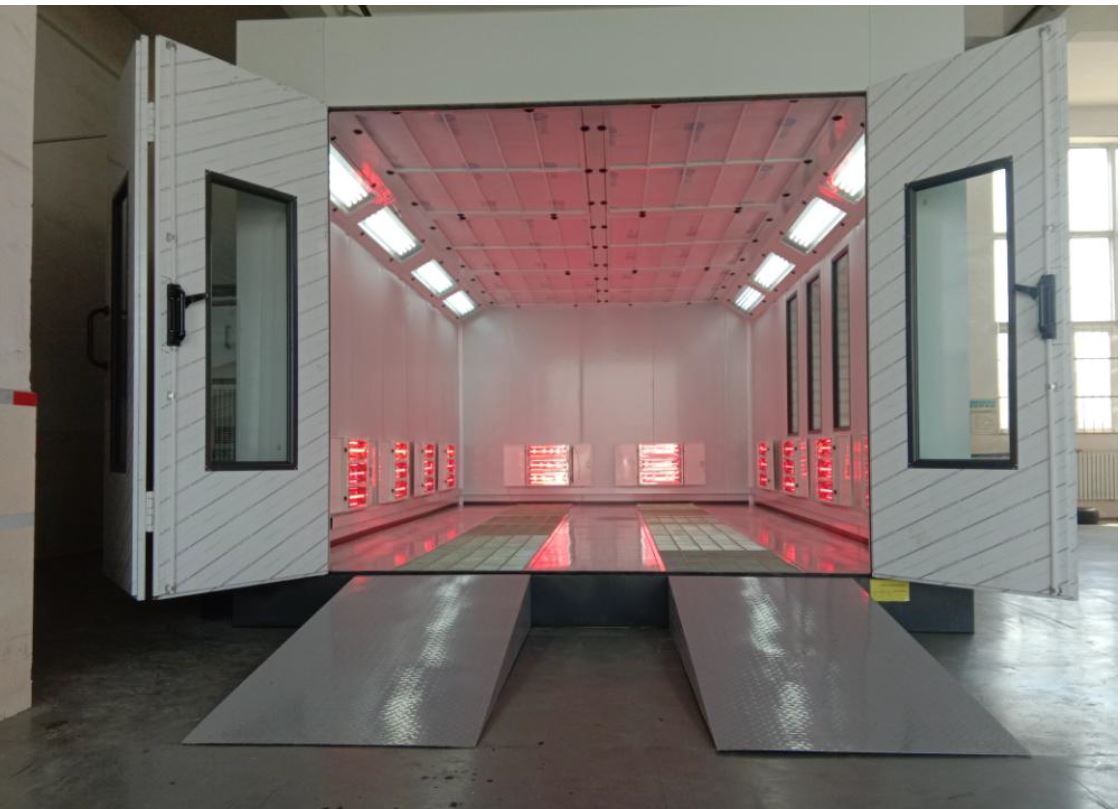

Spraybooth  Electrical heating  AA-SB01 ( By  infrared heating lamp)

AA-SB01  Parameters

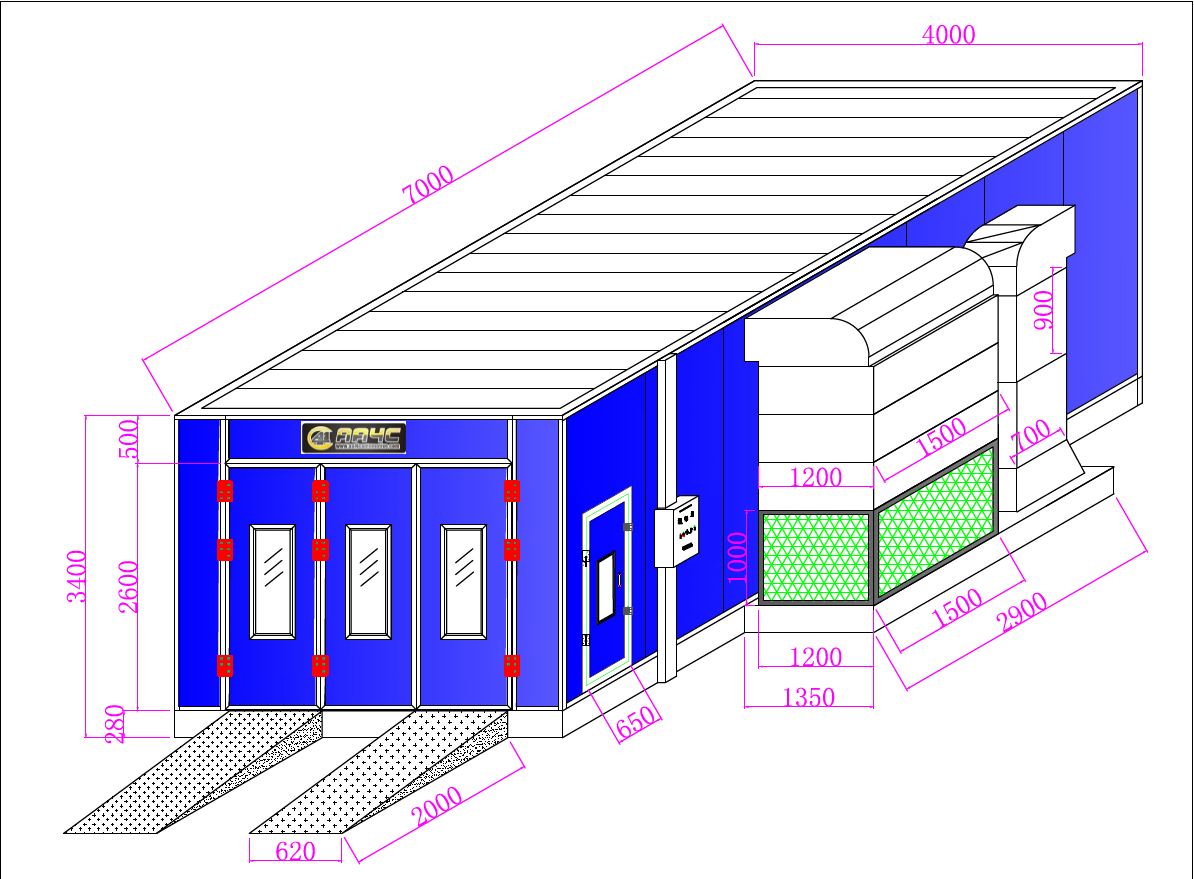

Outside size

7000×5350×3400mm(L×W×H)

Inside size

6900×3900×2650mm(L×W×H)

Entrance door

3 folds,3000x2600 mm(W×H), bending steel without covered frame

Emergency door

650*1800mm(W*H),equipped with handle lock

Main System

Cabin system

Wall panel

-Sandwich style EPS 50mm,0.4mm thick steel,  anti-flame and heat-insulation.

-High quality galvanized steel roof panel.

Basement

-Galvanized steel assemble,280mm high,quadrate steel support,3 rows of grills,2 row diamond plate

-2 ramps,external setting,620*2000mm(W*L)/pc

Ventilation system

Inlet fan

2*3kw double-intake centrifugal fans, model:  YDW4.5L1, air capacity:12500m³/h for each set

Outlet fan

Optional

Cabinet setting type

-Exhaust air from side,adopt powder quadrate steel frame , strong and beautiful .

-Cabinet for the fan*1unit

-air duct*910mm long*2pcs

-Elbow: 90°*1 unit

Airflow speed

0.3m/s,ventilation rate:260 time/h

Heating system

infrared baking system ,10 groups*3kw heating lamps, max working temp:80℃,temp range(20-80℃):15-20min

Lighting system

Ceiling lights

8groups * 4pcs= 32pcs*16w  fluorescent lamp

Side lights

Optional

Filtering system

Primary filter

Grade G2 plate type , filtering rate83%

Ceiling filter

EU5 grade high efficient filter,filtering rate98%

Control system

Control panel

Intelligent control system

Function

Lighting,painting,over load,open phase protection

Total power

37KW

Voltage/Frequency

380V,50HZ,3 phase
