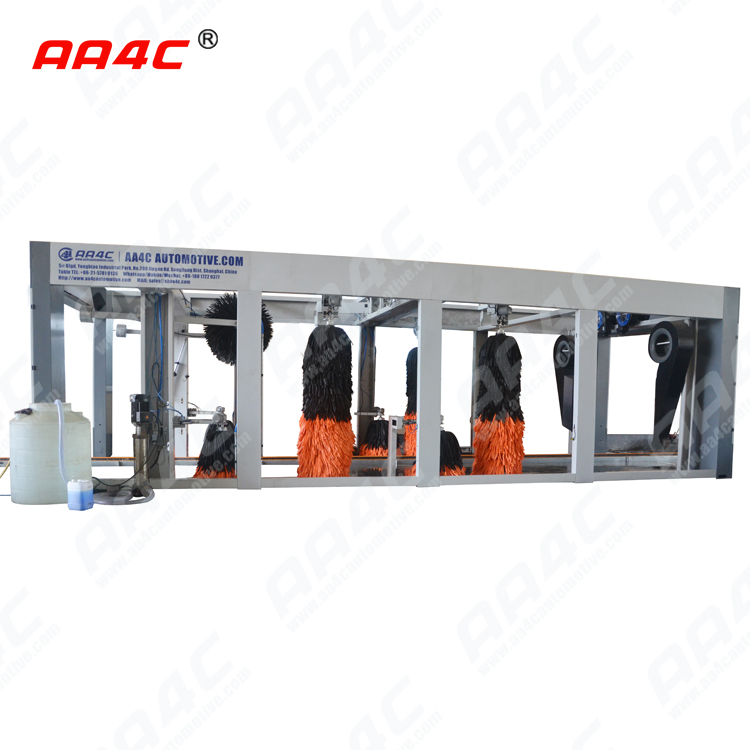

9 brushes Tunnel car washing machine

  • AA-CW9
  • Tunnel car washing machine, automatic car washing machine; brushes car washing machine

Description

Specification


Model:

AA-CW9

Machine Size :

11000*4000*3000MM (L*W*H)

Washing Car Size:

5300*2000*2200MM (L*W*H)

Wash for

Cars, mini bus, pickup,SUV,MVP

Washing Speed:

1-2 minutes/car

Water Consumption:

150-200 liter/car

Power Consumption:

0.5 kwh/car

Power Supply:

380 V, 50 HZ, 3 phases

Equipment Moving Speed:

10.5 meter/min

Install Size:

12500*4500*3500MM (L*W*H)

Foundation Size:

13000*4500*3500MM (L*W*H)

Brush:

One top brush

Four side brushesFour small side brushes

Contouring dryer

Four blowers, 4kw*2pcs+5.5kw*2pcs

Total Power:

30KW

Water supply

DN25mm/Waterflow rate80L/min

Air pressure

0.75-0.9Mpa/Airflow rate0.1m³/min

Shampoo consumption

7ml/Car

Water wax consumption

12ml/Car

Electronic Control System:



Water Configuration:






Parts list

NO.

Description

Brand

Origin

Features

1

Programmable Controller

Mitsubishi

Janpan

Superior quality, World name brand stableperformance

2

Touch Screen

Schneider

France

Superior quality, World name brand stableperformance

3

ON/OFF Power Supply

Schneider

France

Superior quality, World name brand stableperformance

4

General machine airswitch

Schneider

France

World performance name brand stable

5

Contactor

Schneider

France

World performance name brand stable

6

Heater protector

Schneider

France

World performance name brand stable

7

Button

Schneider

France

World performance name brand stable

8

Relay

OMRON

German

World performance name brand stable

9

Breaker

Schneider

France

World performance name brand stable

10

Knob

Schneider

France

World performance name brand stable

11

Emergency switch

Schneider

France

World performance name brand stable

12

Indicator

Schneider

France

World performance name brand stable

13

Photoelectric switch

TURCK

German

World performance name brand stable

14

Proximity switch

TURCK

German

World performance name brand stable

15

Magnetic switch

AirTAC

Taiwan

stable performance

16

Air cylinder

AirTAC

Taiwan

stable performance

17

Two-position 5-wayElectromagnetic valve

Koganei

Taiwan

world biggest pneumatic elementsmanufacturer

18

Filter valve for pressureadjuster

AirTAC

Taiwan

stable performance

19

Water-proof motor

Kolt

Jointventure

World performance name brand stable

20

Bur for brush

foam-cotton bar

Italy

World performance name brand stable

21

Reducer

Dericen

China

soft absorbent, quality, protection durable, carnon paint

22

Specific wind blower forcar wash

German windblower

Jointventure

All of housing, maintenance free of change alllife

23

Brush bar

Dericen

China

lower consumption, noise, lower higherenergy wind rate,high pressure

24

Transmission chain

Dericen

China

Superior quality,stable performance,major ball

25

Pre-washing platform

high pressurewater pump

America

sprayer with high pressure water column

26

Combined relay

OMRON

German

Superior quality,stable performance,major ball

27

Air--routeelectromagnetic valve

AirTAC

Taiwan

Superior quality,stable performance,major ball

28

Water-routeelectromagnetic valve

AirTAC

Taiwan

Superior quality,stable performance,major ball

29

Frame for the wholemachine

Zinc coated andluxurious paint

China

luxurious material paint and imported

30

Metering pumps

Schneider

France

World performance name brand stable

31

Main brush gear box

Dericen

China

lower consumption, noise, lower higherenergy wind rate,high pressure

32

Dried Configuration

Dericen

China

Superior quality,stable performance,major ball

Product function:

1.This car washing machine is suitable for the car, jeep, and minibus to high pressure water washing, wax and drying. Can identify the car model with photoelectric sensor controlled by CPU.

2.Introduce advanced technology from Italy, European type stream line design ,not only good look but also with reliable safety.

3. ZAM alloy or hot-dip galvanized frame keep the machine long life use.

4.Chinese foam & super soft brushes, impossible to scratch lacquer, each set could be used for about 100,000 car-times. Inclinable side brush strengthens cleaning ability around the car.

5.The dovetail foam brush makes the car washing more quiet and clean.

6.Main components from world famous manufacturers ,high reliability ,long using life.

7.Fault Self-detect function.

8.Three function(Car wash, Inspection and management)to an operation panel

9.Automatic control and multi-function operation ,such as washing ,drying and wax.

10.Dried by four sets offans and car shape imitating dry system.

11.Long durable time: more than 10 years
