AA4C Alloy Rim Diamond cutting machine wheel repair lathe machine AA-CK6160Q

ITEM NO.: AA-CK6160Q
DESC: AA4C Alloy Rim Diamond cutting machine wheel repair lathe machine AA-CK6160Q
Packed Size:
Color:
Voltage:
Quantity:

Description

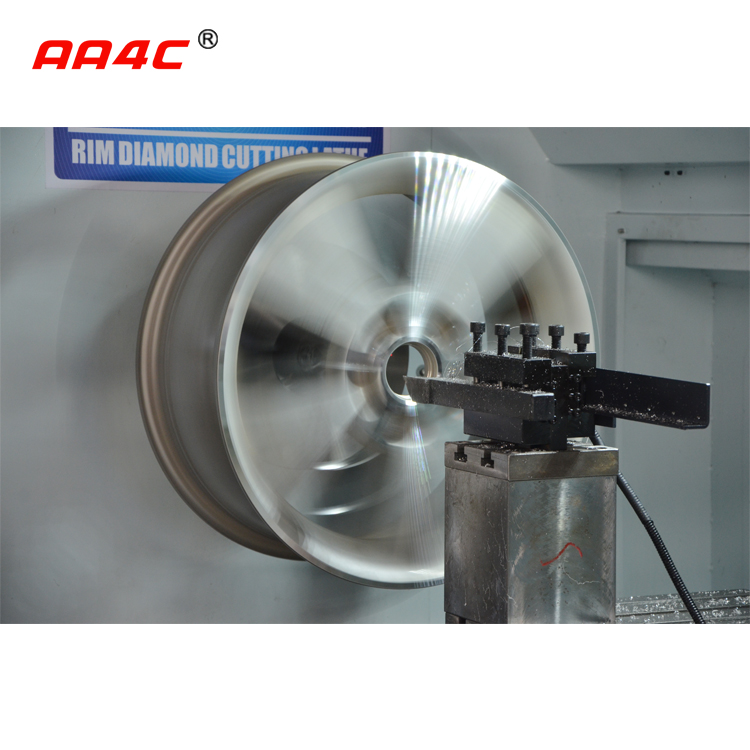

AA4C Automatic Car Alloy Wheel Rim Diamond Cutting machine Rim Refurbish CNC lathe wheel straightening repair machine AA-CK6160Q

Our purpose build alloy wheel lathe incarcerates a user friendly multi-touch interface for simplified probing and cutting processes. With full digital optimization build directly into the interface, there is no need of a separated computer system to house the software, making this our best ALL IN ONE solution for repairing diamond cut alloy wheels.

Main feature

◆Economy.

◆Either Laser scanning OR Needle probe scanning, Or pay additionally get 2 functions simultaneously .

◆Wheel data is automatically stored, machining program is arbitrarily called out.

◆Software independent development, program automatically optimize

◆ Wheel processing is automatic precise and fast

◆Touch screen operation, support multiple languages

◆X / Z axis measurement, wheel surface and circumferential machining.

◆Automatic lubrication system.

◆Diamond cutting.

◆The machine interface can be customized according to customer requirements.

技术参数和配置 Technical parameters and configuration

项目	Item	单位 Unit	参数和配置parameters and configuration
项目	Item	单位 Unit	AA-CK6160Q
最大加工轮毂直径	Max. wheel diameter	Inch	24＂
X轴最大行程	X-axis maximum stroke	mm	320
主电机功率	Main motor power	kw	4
导轨宽度	Rail width	mm	260
最大加工工件长度	Max. workpiece length	mm	500
轮毂测量方向	Wheel measuring direction		X、Z
测量工具	Measuring tool	mm	激光、探针可选 Laser, probe (optional)
测量方法	Measurement method		点测和快速扫描 Point measurement and quick scan
程序优化	Program optimization		手动和自动 Manual and automatic
轮毂加工程序储存数量	Number of wheel processing programs		100000
数控系统	CNC System		“昂佛赛”专用系统（触摸屏操作、14＂屏幕液晶显示）， "AA4C" special system (touch screen operation, 17 "screen LCD display).
轮毂加工	Wheel processing		表面、轮缘 surface, rim
机床加工精度	Mchining accuracy		IT6~IT7
表面光洁度	Surface roughness	um	Ra0.8~1.6
主传动形式	Main drive form		变频调速、伺服驱动可选 Frequency control， servo drive (optional)
主轴调速范围	Spindle speed	rpm	出厂设置150~2800 Factory setting 150~2800
快速移动速度	Fast-moving feed	mm/min	X :5000 Z :8000
重复精度	Repeat accuracy	mm	X :0.01 Z :0.015
刀架形式	Turret form		固定刀架 Fixed turret，Electric turret (optional)
车刀刀柄尺寸	Section of turning tool	mm	25×25
机床外形尺寸(L×W×H)	Machine size(L×W×H)	mm	1900×1400×1750
包装尺寸	Packing Size:	mm	1990mm* 1510mm* 1940mm
机床净重	Net weight	kg	1300KG
