AA4C Alu Rim polishing machine with cleaning grinding derust function AA-RPM66B

  • AA-RPM66B
  • AA4C Alu Rim polishing machine with cleaning grinding derust function AA-RPM66B

Description

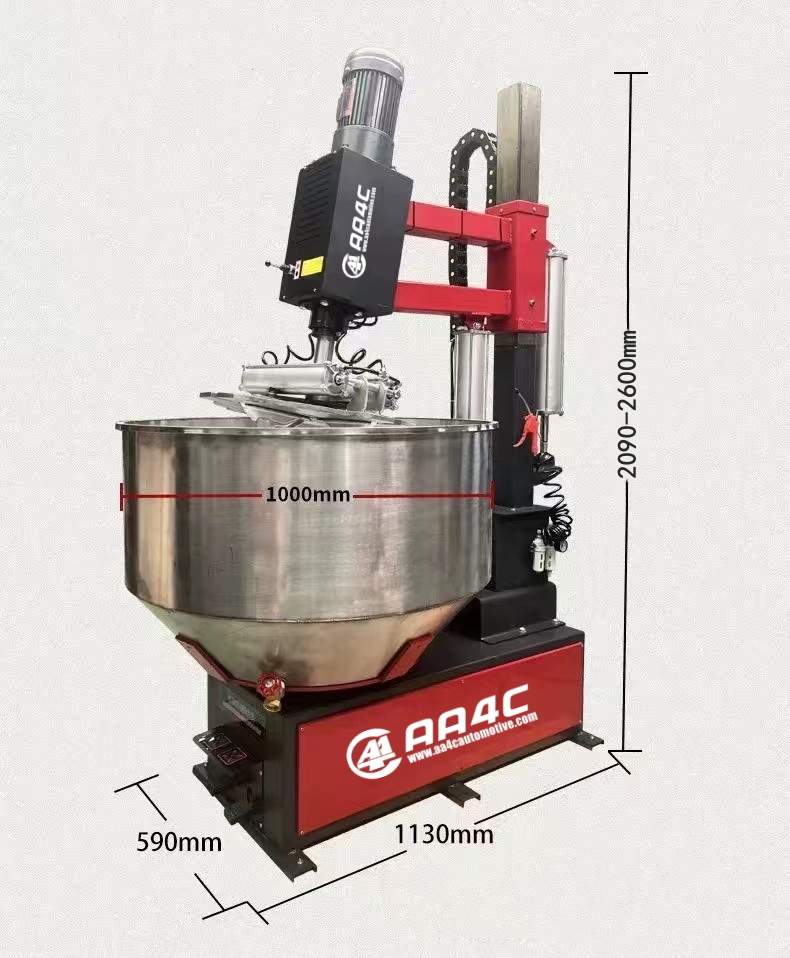

AA4C Alu Rim polishing machine wheel cleaning grinding derust repair rim diamond cutting machine AA-RPM66B



 Parameters
 Rim size 12”-24”
Barrel diameter 960mm
 Qty for Media 350kg/Barrel



Media For dull grinding/Cleaning

5mm -6mm “Brown fused alumina”
 Voltage 220V/380V;50HZ/60HZ; 1Ph/ 3ph
 Motor power :

 Main shaft motor :1.5KW;

 Barrel motor :1.1KW

 N.W: 350KG
 Packing size 1000* 1800*1800mm

Note  :

  1. The media no need replace, it is not consumable .You can use again and again. If the barrel and the media is dirty ,just open the bottom valve and rinse with water. Then add new cleaner or brightener .



  1. Because the media is very heavy (350kg-450kg per barrel )and expensive( especially zirconia), it is not easy to replace, if you need to do grinding and polishing two functions, it is recommended that you buy 2 Units, so that you do not need to replace the media..



  1. “cleaner” is used at Grinding/cleaning/ derusting step, Similar as add washing powder when washing clothes; “brightener” is used at the polishing step, Similar as wax brightening after cleaning leather clothes .
