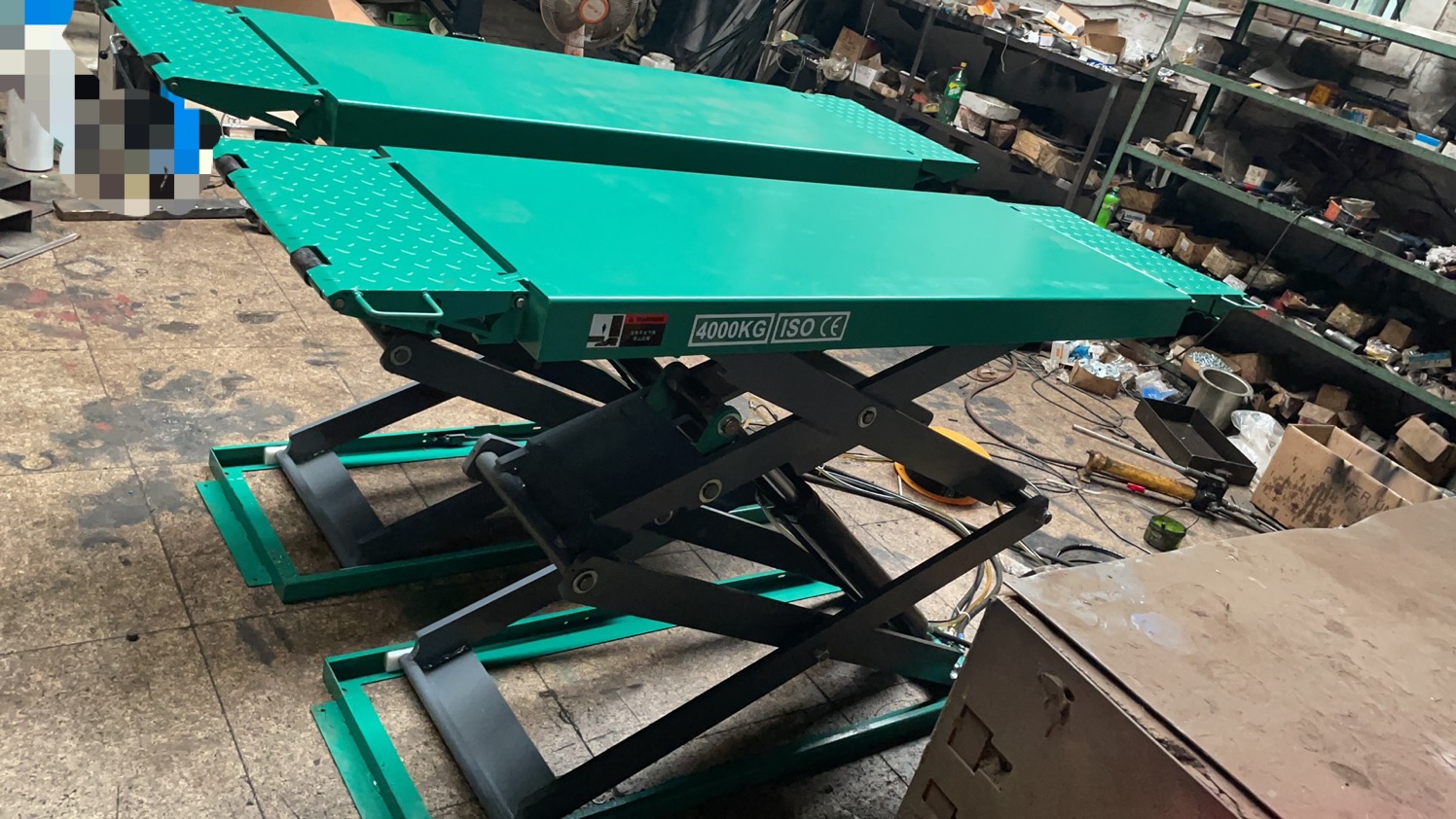

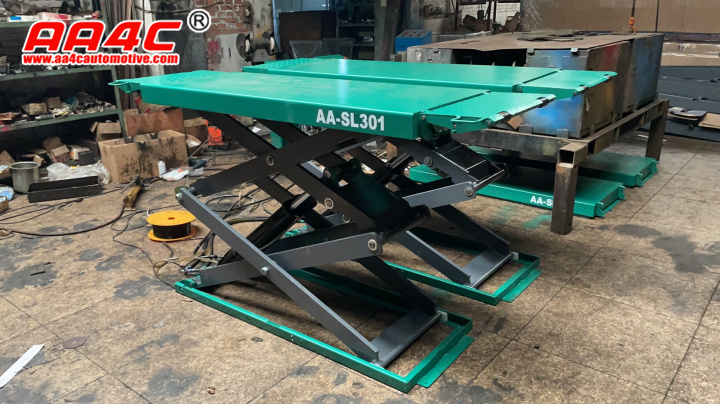

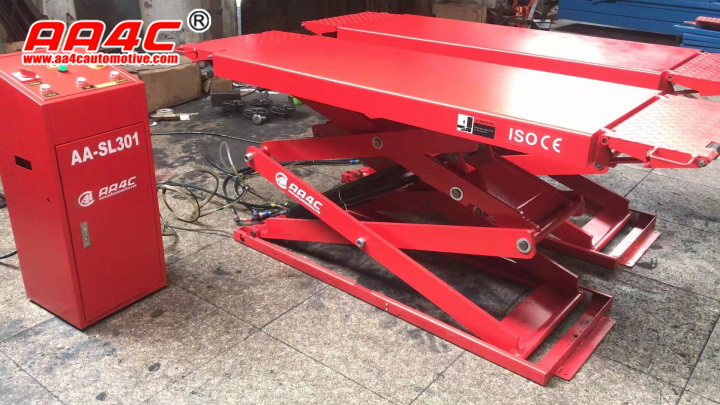

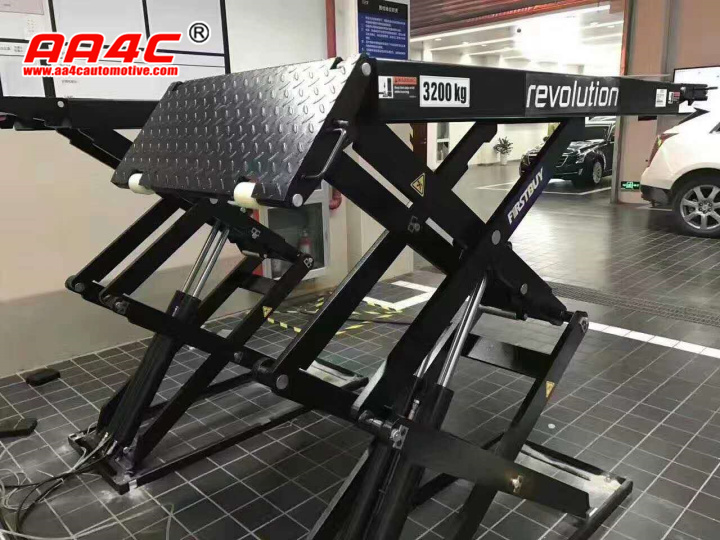

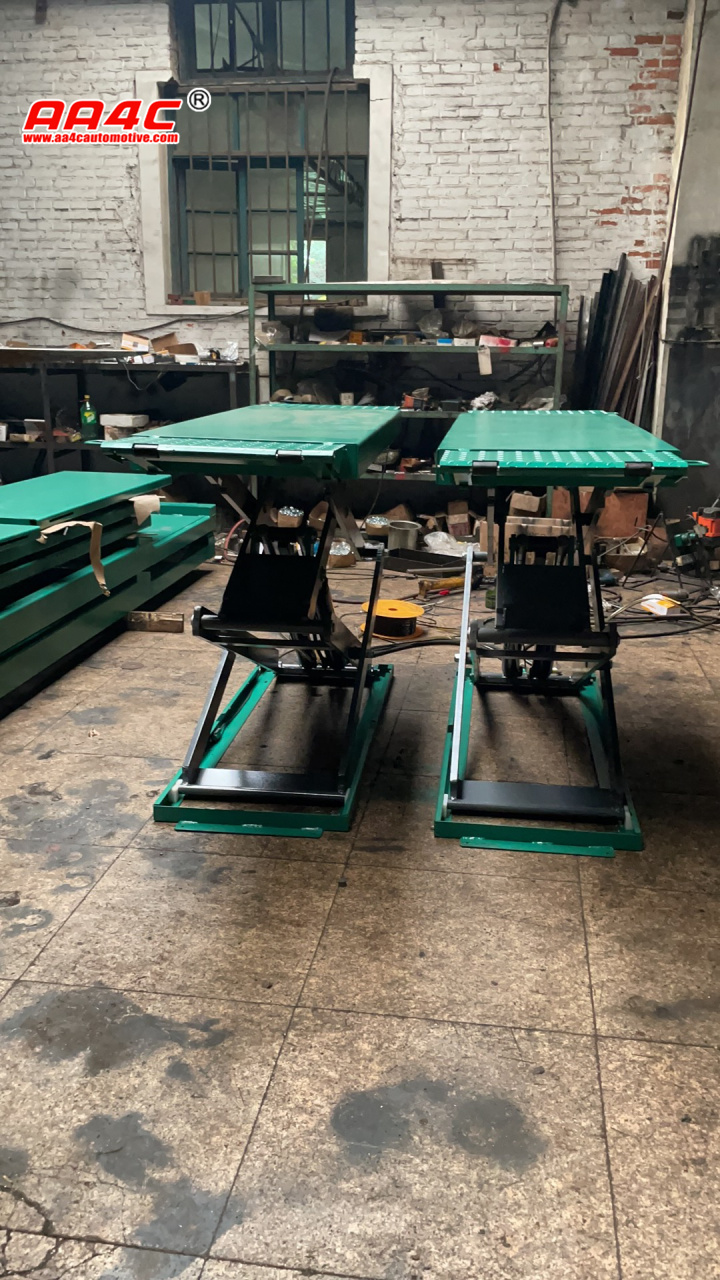

low profile full rise scissor lift

Features:

1. Above ground installation
2. 4 cylinders structure, 100mm min height
3. Antiskid platform,aluminium motor prevents overheat
4. 24v safety control system
5. 24V height lmited switch included
6. Safety signal when lowering from 500mm above ground
7. Platforms extension for lifting long vehicles
8. Pneumatic control lock device
9. 115% dynamic and 150% static loadng test passed
10. CE approved

Safety lock

Slope

lifting capacity

3000kg

Max Lifting height

1830mm

Min. height

110mm

Overall length for platform

1450~2050mm

Overall width for platform

660mm

Lifting time

50S

Motor power

2.2 kw

Power supply

220V/380V/415V

Oil pressure

20 Mpa

Air pressure

6~8 Bar

Weight

900 kg

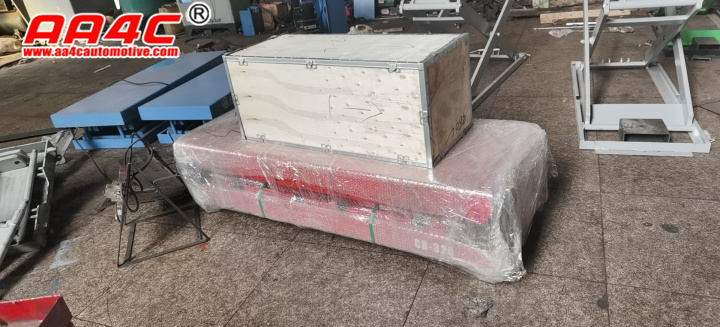

Packing size

1620x680x340 (mm)

560x450x1150 (mm)
