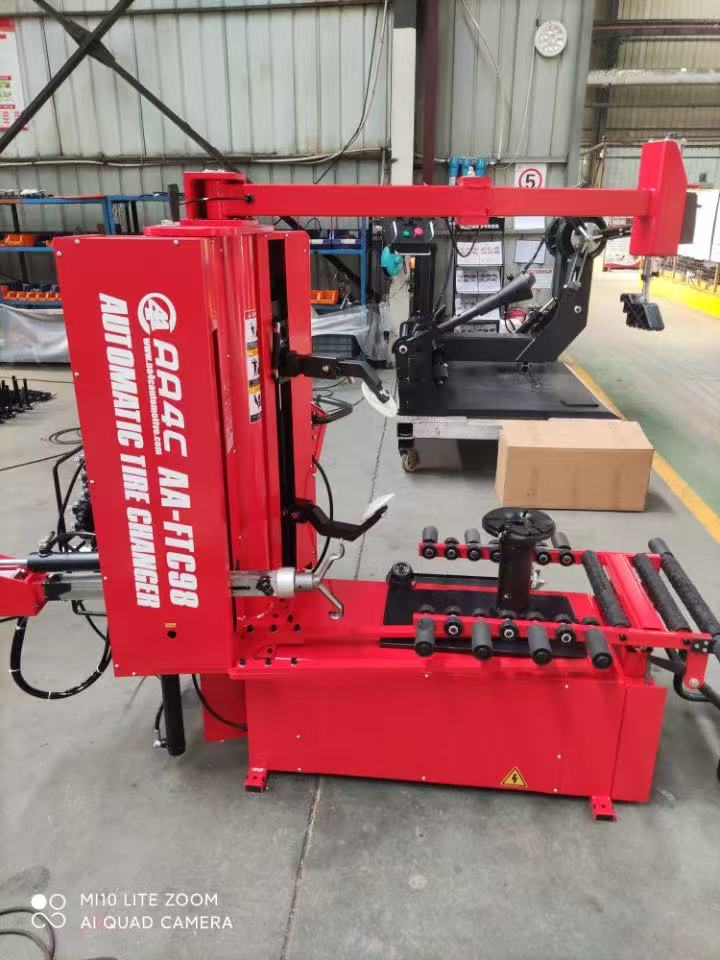

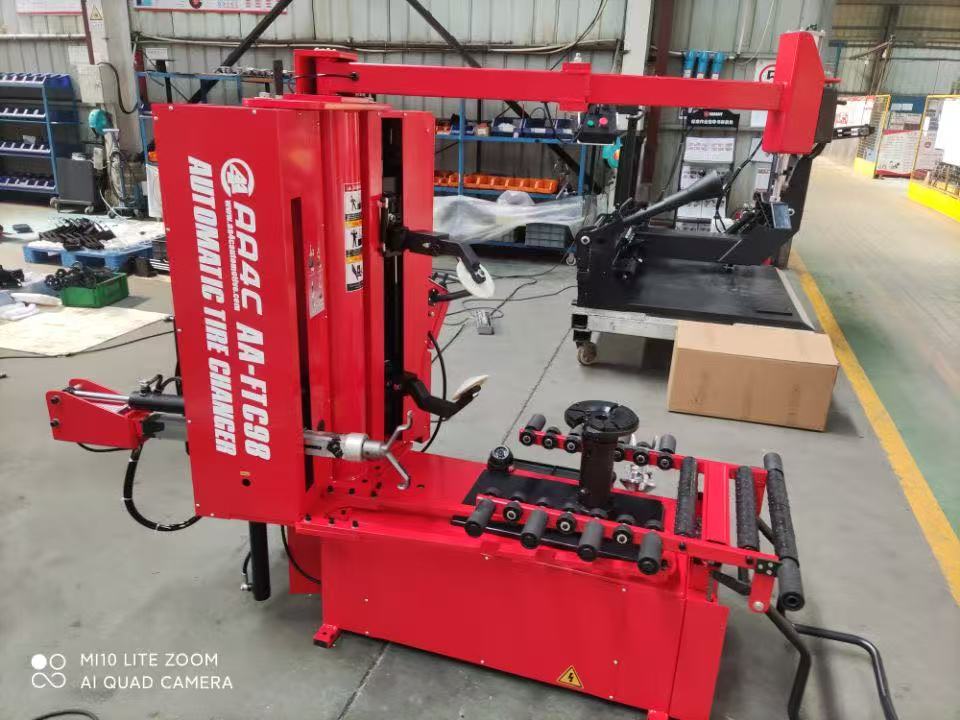

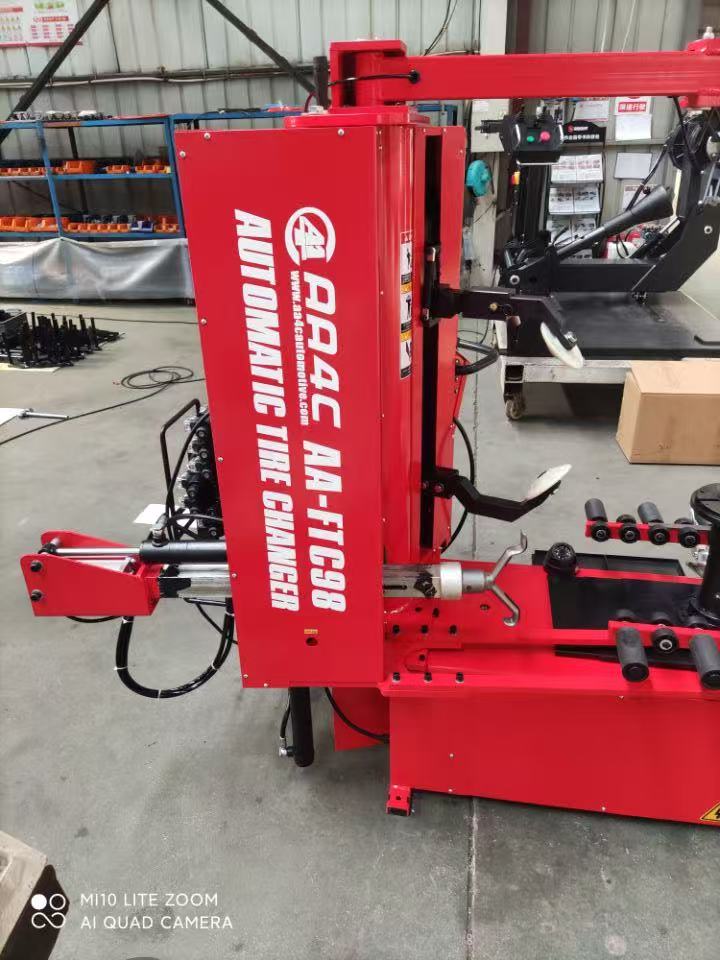

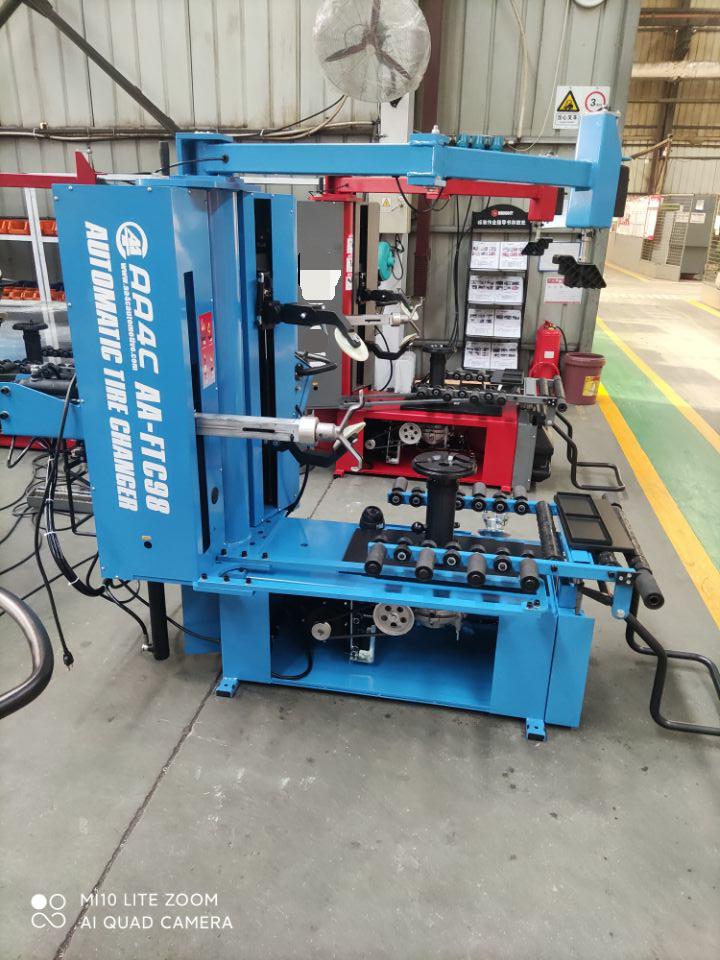

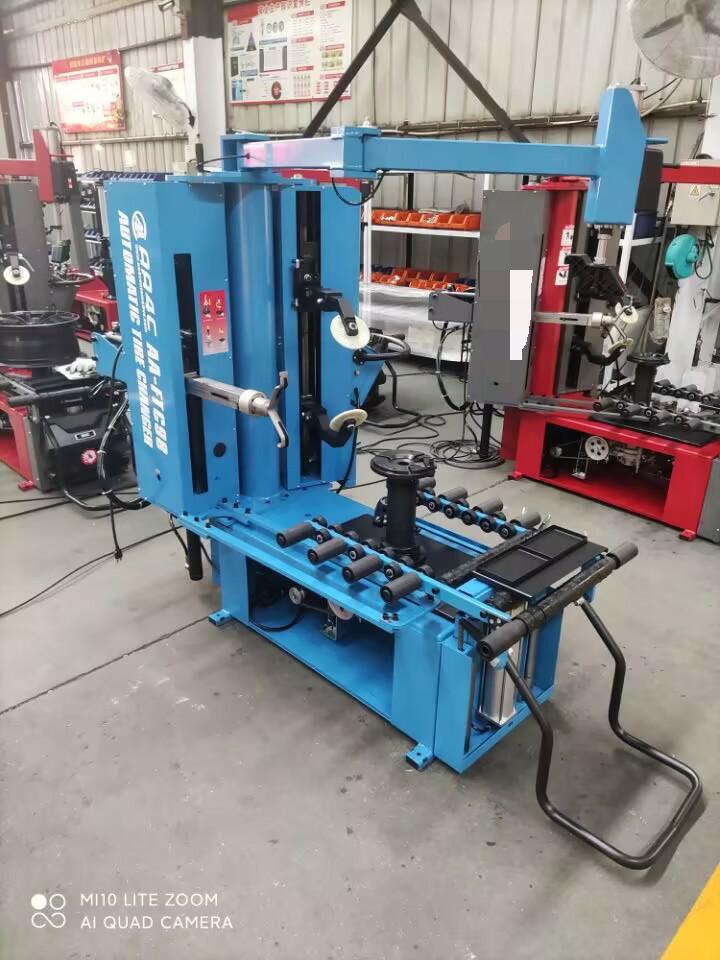

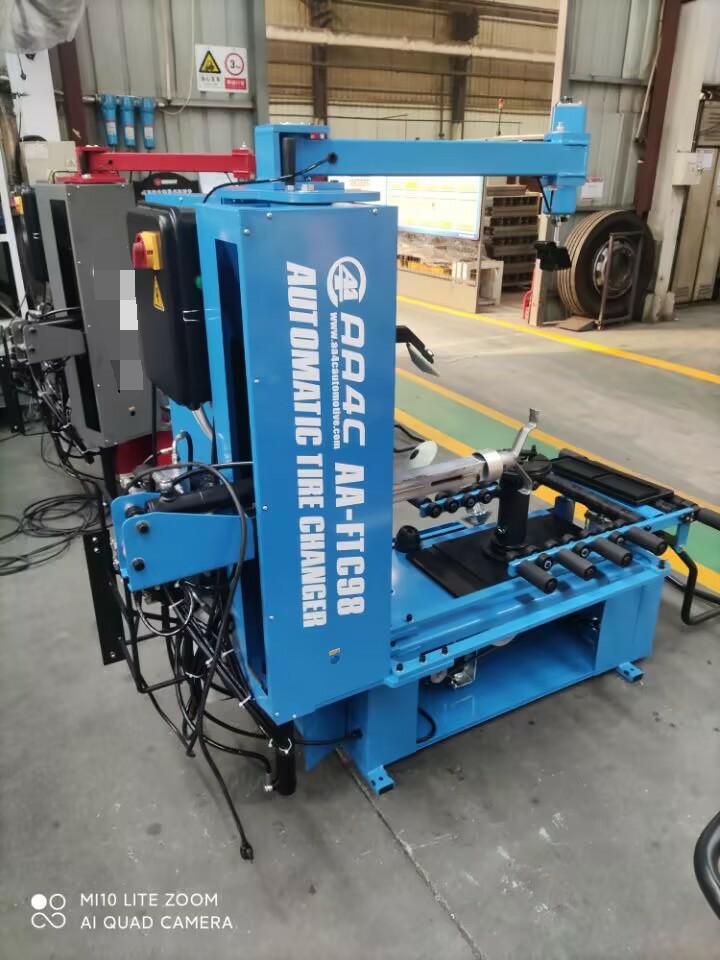

Full Automatic Tire changer AA-FTC98

  • AA-FTC98
  • Full Automatic Tire changer AA-FTC98

Description

AA-FTC98

Full Automatic Tire changer

Due to the demand  on the run flat tire and UHP tire has increased now, the trend of the auto-service equipments goes towards higher automation level and lever-less.  It is no need to turn over the tire for the center hole clamp, making the entire  M/D process  safer, faster and  more convenient.

Our  new product of tire changer  model AA-FTC98 adopts this method center hole clamp tire changer with roller.

Features

1. Conic center chuck with the protective cover and cones of 5types, making the positioning of various rim very accuracy and the clamp is very fast.
2. Helper with the double tire press disk, automatic rotate , with the scale positioning very accurate and optional equip the plastic tool head.
3. With the tool box making the store of the tire accessory and tool very convenient.
4. Standard equip the hand-hold blast inflation device make the effect of the infletion very best.
5. With the wheel lift, lifting the tire of very big and very heavy easily.
6. The chuck has 3 positions, by which you can select the suitable thickness of teh tire.
7. Camera can monitor the process of dismount/mount of the tire from the bottom.

8. Dual speed function improve the working efficiency.
9. The structure without the turntable, making the mount of the rim fast and without damaging the rim.
10. The installation of the helper, making the mounting of the tire easily.
11. Leveless structure make the operation easily.

Place the tire on the tire lift and step down the lift control pedal.

The tire will be lifted up and from the vertical situation  to the horizontal situation. Slide the tire to the position above the chuck. Step the control pedal to drop the tire on the tire chuck.

Technical data

Max. wheel diameter

1300mm

Rim diameter

10“30”

Wheel thickness

3“13”

Main shaft transverse sliding distance

285mm

Bead breaker power

1400kg

Blast inflation pressure

0.6map-0.7map

Main shaft rotation speed

low speed of 6.5rpm & high speed of 13rpm (dual speed)
