Product Description

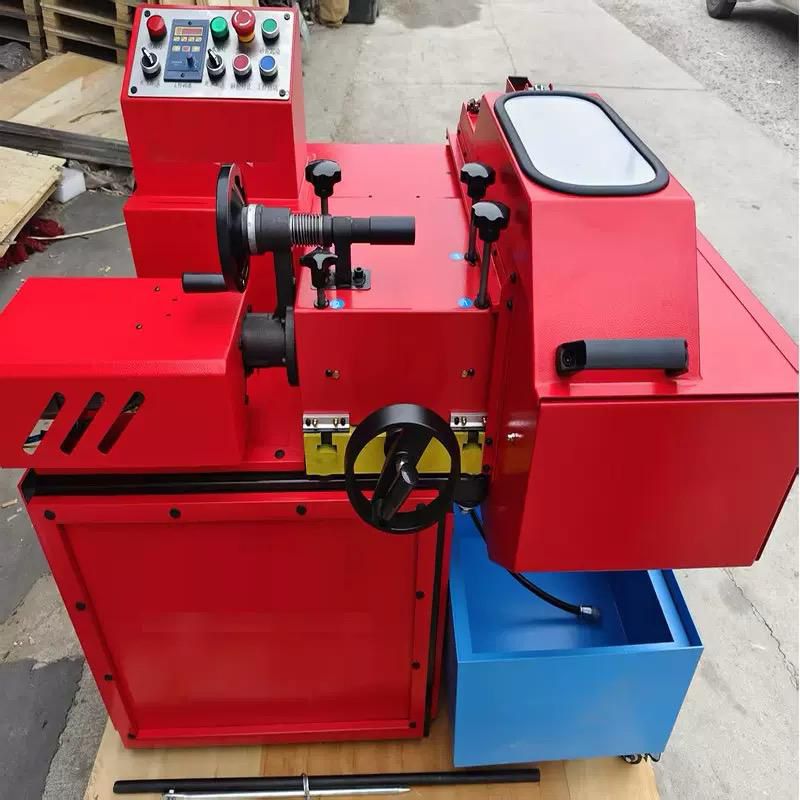

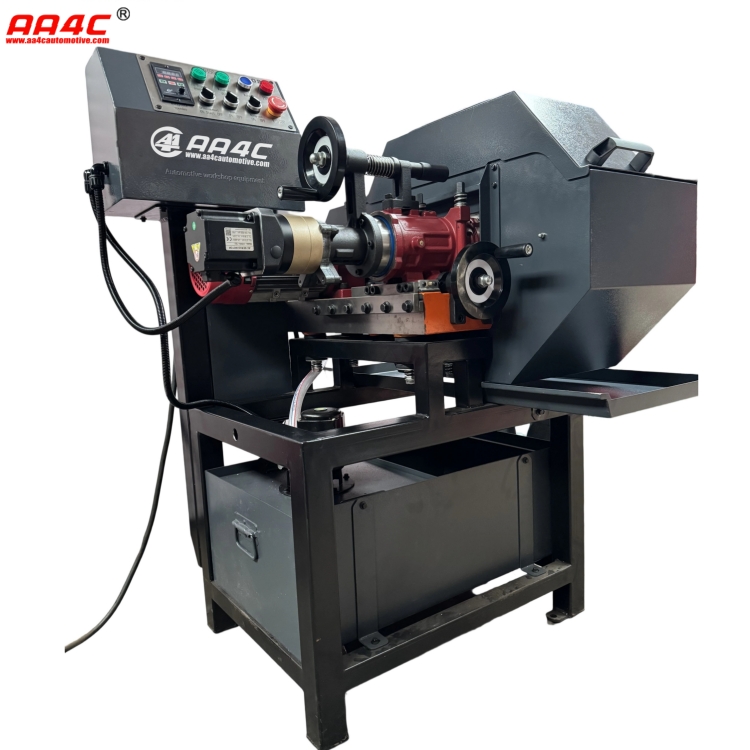

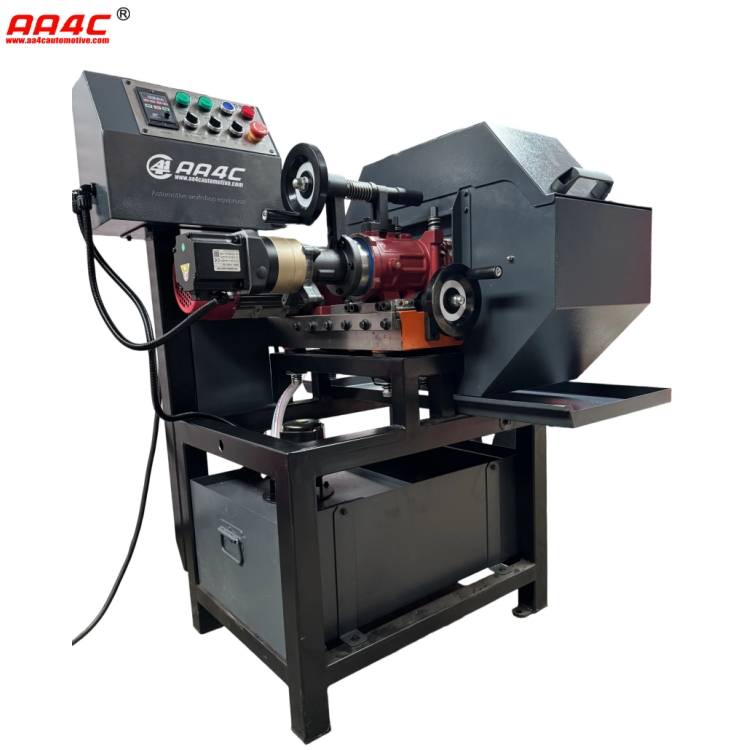

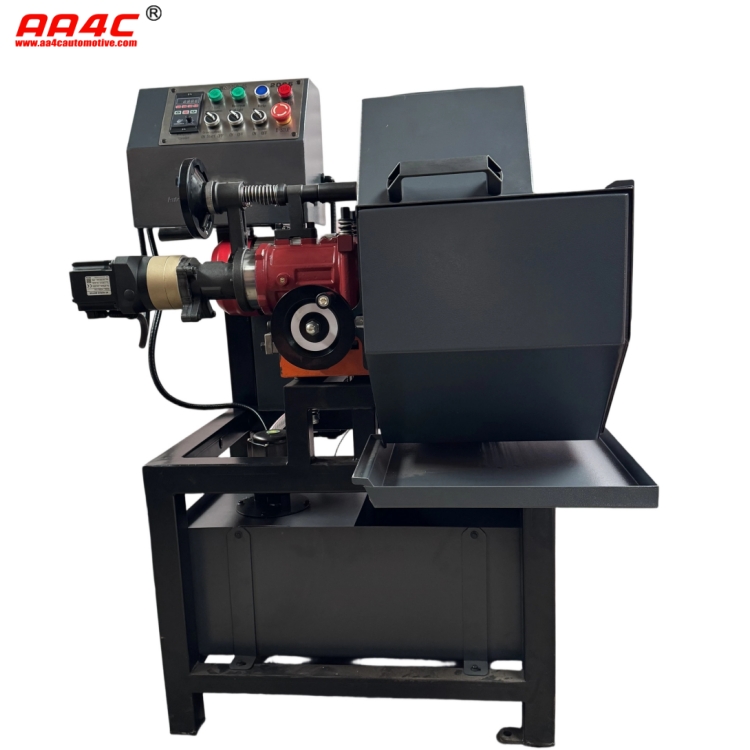

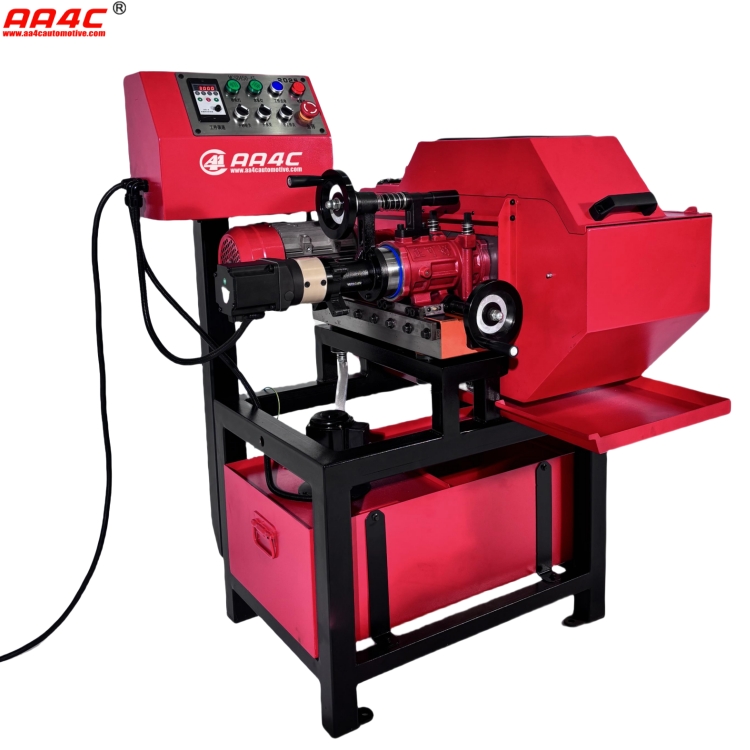

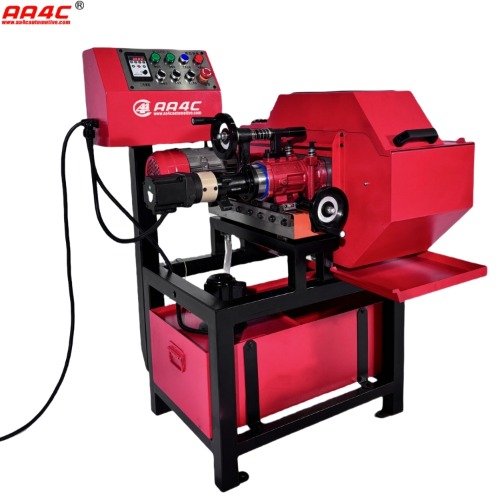

AA4C vehicle brake disc grinding machine brake disc lathe machine

Diameter:405mm

thickness:40mm

Specifications

- Dimensions: Length 1.15m, Width 0.75m, Height 1.1m

- Weight: 175–178 kg

- Maximum grinding diameter: 405 mm

- Maximum grinding disc thickness: 40 mm

- Maximum working surface width of the brake disc: 100 mm

- Standard power supply: 380V+N four-wire; 220V available upon request

---

Versions and Price Differences:

1. Standard Version

- Comes with a regular grinding wheel and a 120W motor of a specified brand.

- Price varies depending on the motor brand and excludes shipping costs.

- Grinding a 350 mm diameter disc takes 7 to 9 minutes.

2. Classic Version

- Equipped with diamond grinding wheels (capable of grinding 800–1000 brake discs with a diameter of approximately 350 mm).

- Includes a 120W motor with brand variations and shipping costs included.

- Grinding a 350 mm diameter disc takes 7 to 9 minutes.

3. Pinnacle Version

- Features diamond grinding wheels and includes 5 sets of high-grade angular contact bearing spindles (two spindles).

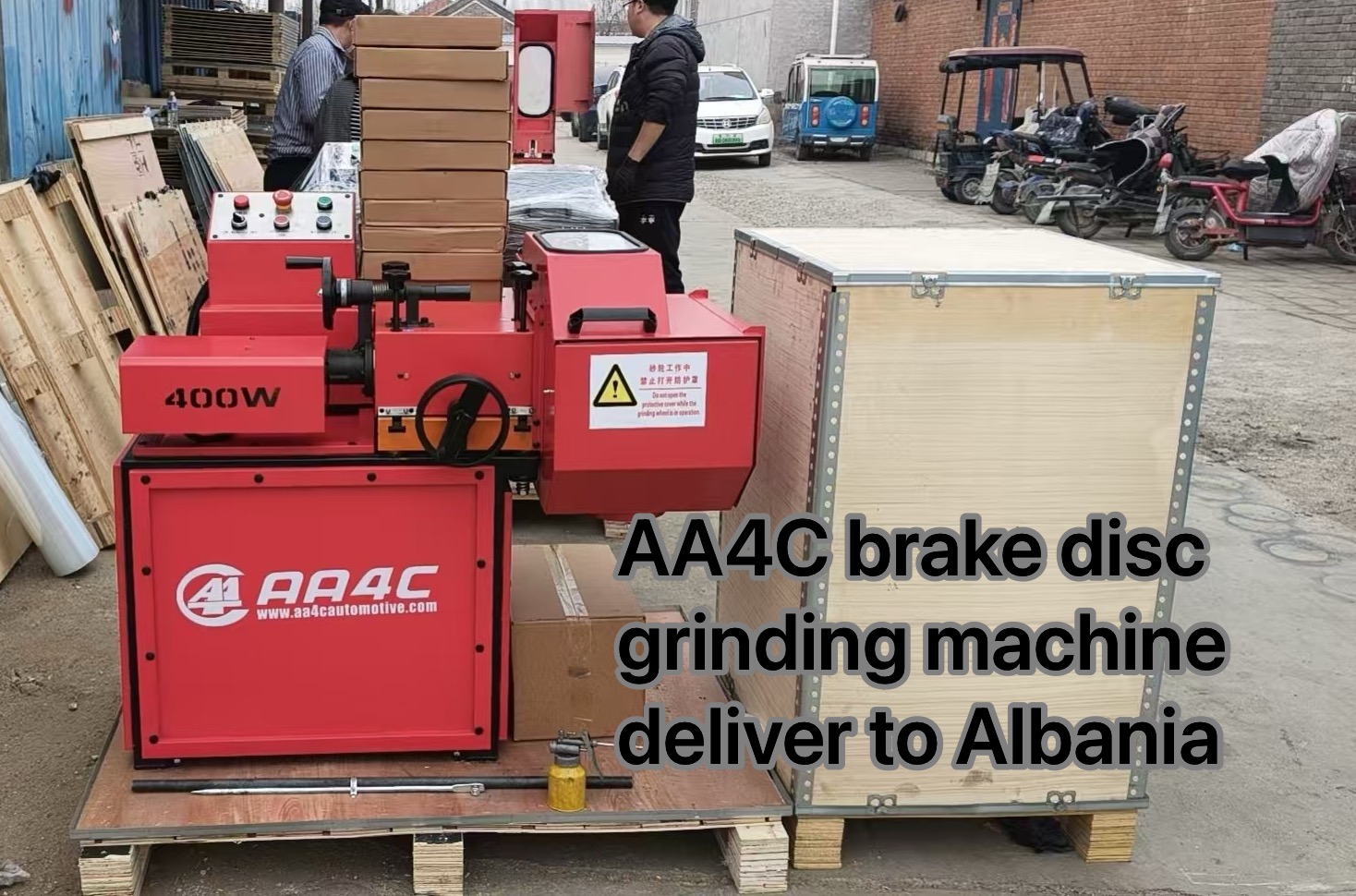

- Upgrades the 120W constant-speed motor to a 400W variable-speed motor.

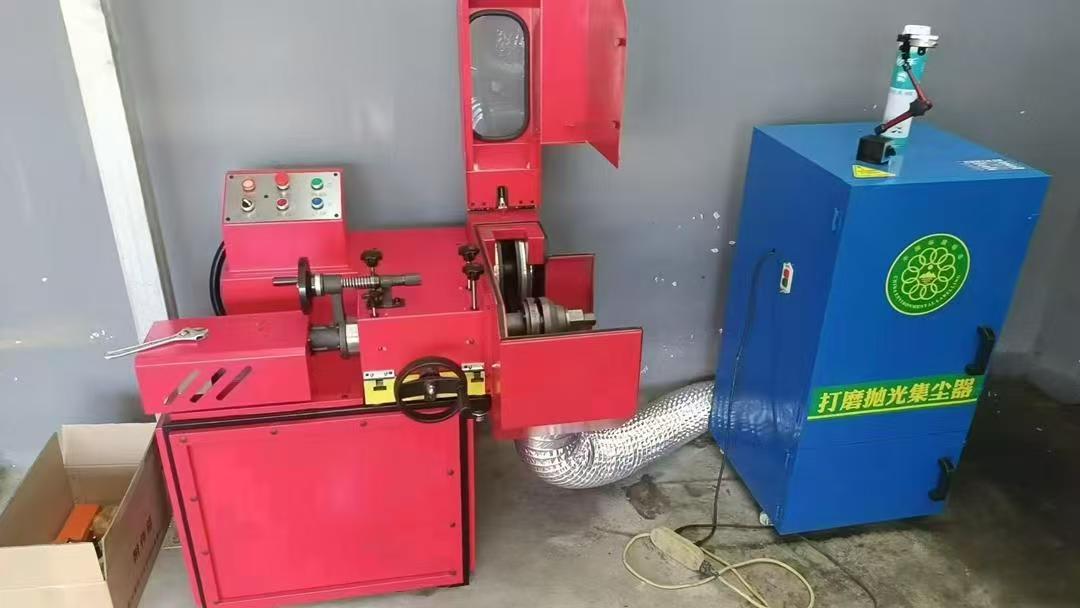

- Comes with an industrial-grade dust collector.

- Grinding a disc with a diameter of approximately 330 mm takes 6 to 8 minutes.

Consumables and Cost:

- A set of grinding wheels (2 pieces) can grind 800–1000 discs with a diameter of approximately 330 mm.

- Replacement diamond grinding wheel sets have the same capacity (800–1000 discs with a diameter of approximately 330 mm) and cost

Features of a Brake Disc Grinding Machine

1. High Precision Grinding**
- Ensures uniform surface finish and optimal performance of brake discs.
- Equipped with advanced mechanisms to achieve tight tolerances.

2. Multi-functionality**
- Capable of grinding both flat and ventilated brake discs.
- Adjustable settings for various disc sizes and shapes.

3. Automatic Feed System**
- Smooth and consistent grinding process with adjustable feed rates.
- Reduces operator fatigue and increases productivity.

4. Advanced Cooling System**
- Integrated coolant system to minimize overheating and extend tool life.
- Prevents warping or damage to the disc surface.

5. User-friendly Interface**

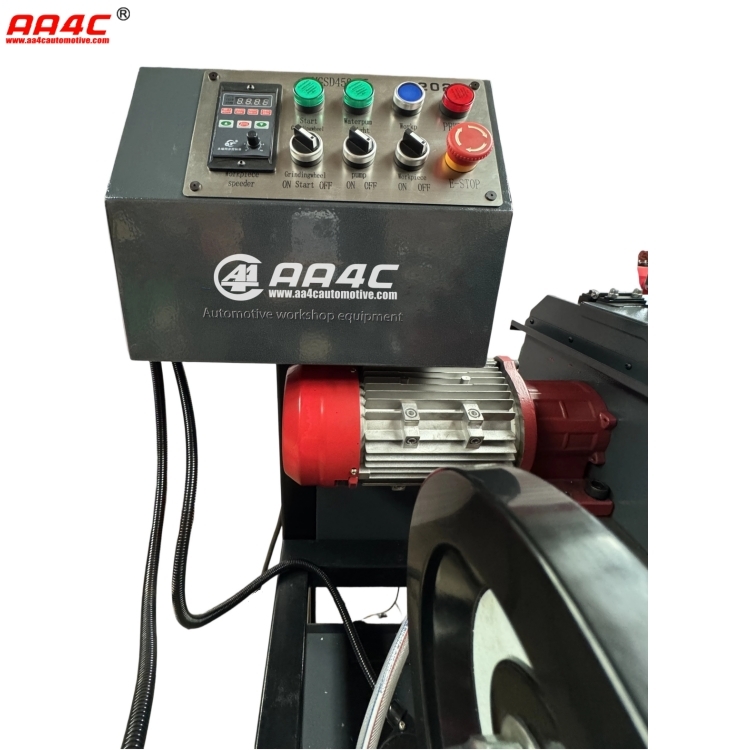

- Touchscreen or digital control panel for easy operation.
- Pre-programmed settings for different disc specifications.

6. Heavy-duty Build**
- Sturdy, vibration-resistant construction for durability and stable performance.
- High-quality grinding wheels designed for longevity.

7. Safety Features**
- Emergency stop button and protective enclosures.
- Dust and debris collection system to maintain a clean work environment.

8. Customizability**
- Modular design for compatibility with a range of brake disc models.
- Options for manual, semi-automatic, or fully automatic operation.

9. Precision Measurement Tools**
- Built-in sensors or gauges to measure disc thickness and ensure even grinding.
- Feedback systems to alert the operator of inconsistencies.

10. **Energy Efficiency**
- Optimized motor performance to reduce power consumption.
- Eco-friendly design with minimal environmental impact.

These features make brake disc grinding machines essential in automotive repair workshops and manufacturing units for maintaining the quality and performance of brake systems.
