Super thin basement Hydraulic mobile 1 post lift AASP-YY2.5

Description

AASP-YY2.5

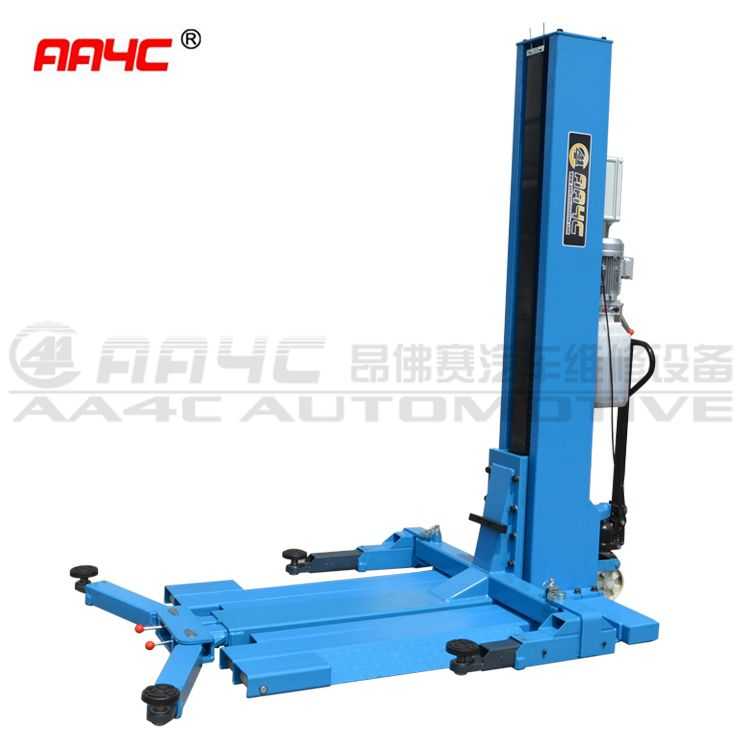

Super thin basement Hydraulic mobile 1 post lift

Features:

1. Space saving single post design can be positioned either to give complete free access to the drivers door.

2.Single hydraulic cylinder

3.Heavy-duty leaf chain

4.Free standing design

5.Durable construction for maximum stability

6.Mechanical saety device against the accidental lowering

7.Adjustable support arm

8.Overload safety valve

9.Lowering speed control valve

10.Safety valve against the breaking of the hydraulic circuit

Model Name	Hydraulic Movable AASP-YY2.5
Lifting capacity:	2500kg
Max. lifting height	1950mm
Lifted vehicle width	≤1800mm
Lifting speed	40mm/s
Motor power	2.2KW
Voltage	380V400V415V220V Three-phase, single-phase
Frequency	50Hz/60Hz
Oil pressure	11.5Mpa
Approx. single post mass	～720kg
Noise	<60d B(一)/m
Overall dimension	2470x1300x2600mm
Insulation grade	IP64
Working environment temperature	-5℃/+40℃
Working environment	Both indoors and outdoors
