Ingournd Alignment scissor lift 6.0T 5M runway AA-ALSL60

  • AA-ALSL60
  • Ingournd Alignment scissor lift 6.0T 5M runway AA-ALSL60
Buy Now Back

Description

6T 5M Inground Alignment Scissor Lift Parameters
  • Lifting Capacity: 6000KG
  • Lifting Height: 1800mm
  • Secondary Jack: 470mm
  • Min Height: 400mm
  • Width Platform: 600mm
  • Length of Platform: 5000mm
  • Lifting Time: 37s
  • Voltage: 220V/380V
  • Power: 3.0kw
  • Net Weight: 2800kg
  • Packing Size (3 pieces total):
  • - 2 pieces: 5200mm (L) × 650mm (W) × 480mm (H)
  • - 1 piece: 540mm (L) × 400mm (W) × 1050mm (H)

Technical Specifications Comparison
Specification 4T Model 6T Model
Locking block material & size 120*60*6MM Q235 Square tube pipe completely 178*28mm manganese plates (16Mn) or Q355 steel plates

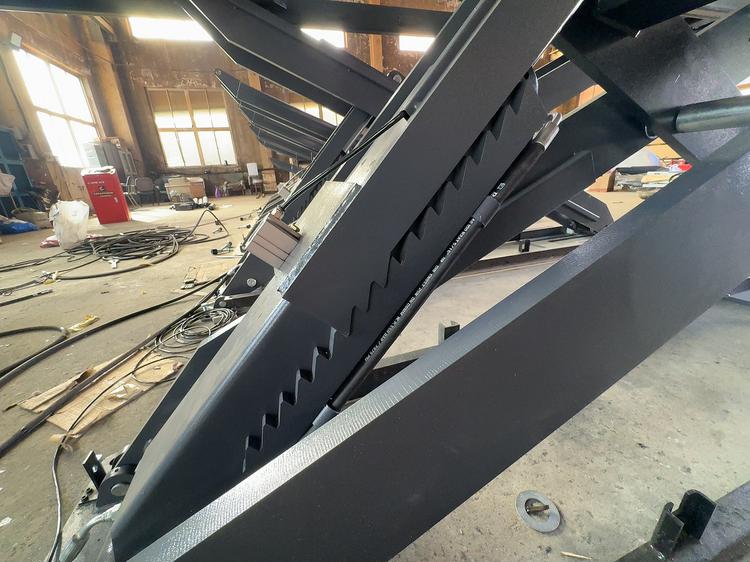

Locking teeth for Main scissor 13pcs 13pcs
Locking teeth for Sub scissor 2pcs 2pcs
Power of motor 2.2kw 3.0kw
Spindle for main scissor 30mm 40mm

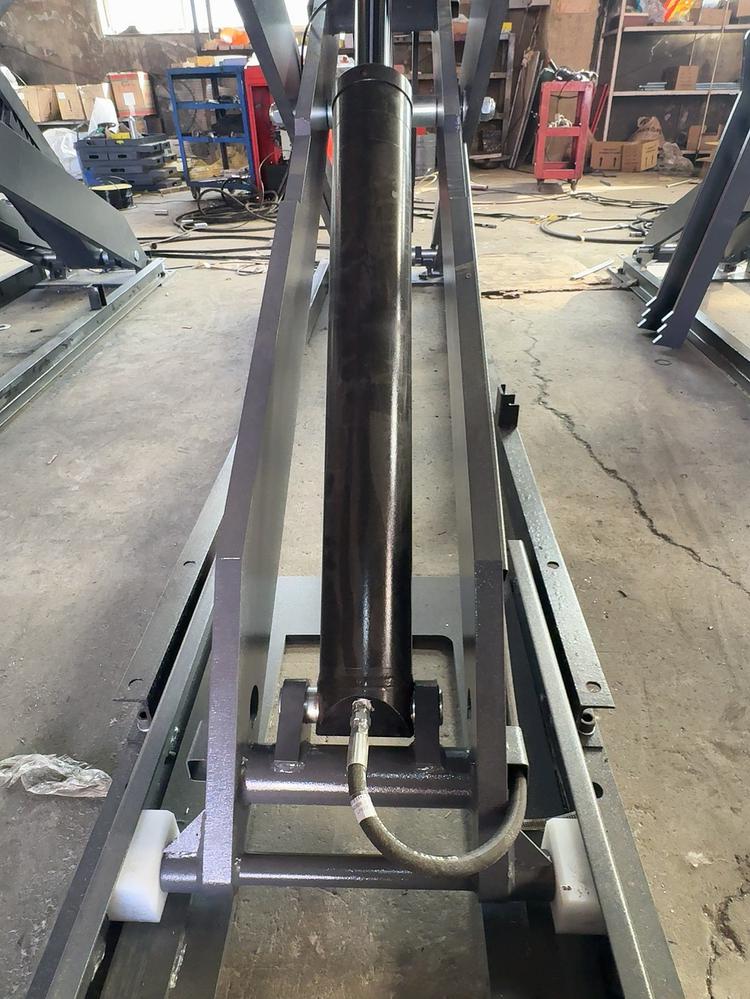

Big scissor main cylinder External diameter:125mm Internal diameter:110mm Piston diameter:63mm Qty :1 pc External diameter:125mm Internal diameter:110mm Piston diameter:63mm Qty :1 pc External diameter:105mm Internal diameter:90mm Piston diameter:50mm Qty :1 pc
Big scissor deputy cylinder External diameter:105mm Internal diameter:90mm Piston diameter:50mm Qty :1 pc External diameter:105mm Internal diameter:90mm Piston diameter:50mm Qty :1 pc External diameter:105mm Internal diameter:90mm Piston diameter:50mm Qty :1 pc
Sub scissor Main cylinder External diameter:115mm Internal diameter: 100 mm Piston diameter:60mm Qty :1 pc External diameter:115mm Internal diameter: 100 mm Piston diameter:60mm Qty :1 pc
Sub scissor deputy cylinder External diameter:115mm Internal diameter: 100 mm Piston diameter:60mm Qty :1 pc External diameter:115mm Internal diameter: 100 mm Piston diameter:60mm Qty :1 pc
