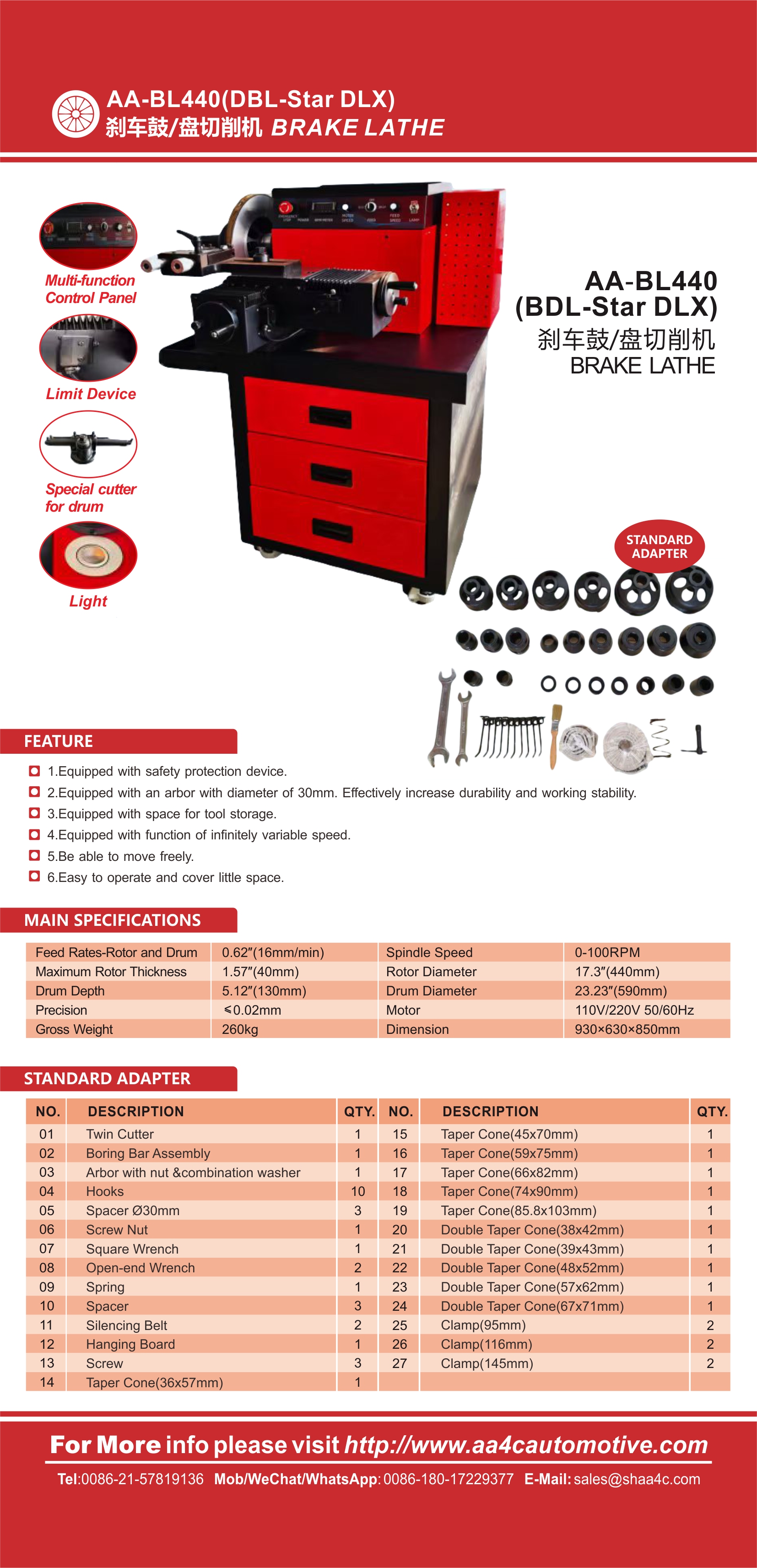

AA4C brake disc drum lathe machine auto AA-BL440 (DBL-Star DLX)

Description

Model No. ：AA-BL440(DBL-Star DLX)

Name : brake lathe brake disc drum lathe machine auto AA-BL440 (DBL-Star DLX)

· Multi-function Control Panel

· Limit Device：

· Special cutter for drum

· Light

· STANDARD ADAPTER：

FEATURE

☑ 1. Equipped with safety protection device.

☑ 2. Equipped with an arbor with diameter of 30mm. Effectively increase durability and working stability.

☑ 3. Equipped with space for tool storage.

☑ 4. Equipped with function of infinitely variable speed.

☑ 5. Be able to move freely.

☑ 6. Easy to operate and cover little space.

MAIN SPECIFICATIONS

STANDARD ADAPTER

NO.	DESCRIPTION	QTY.	NO.	DESCRIPTION	QTY.
01	Twin Cutter	1	15	Taper Cone(45x70mm)	1
02	Boring Bar Assembly	1	16	Taper Cone(59x75mm)	1
03	Arbor with nut &combination washer	1	17	Taper Cone(66x82mm)	1
04	Hooks	10	18	Taper Cone(74x90mm)	1
05	Spacer Ø30mm	3	19	Taper Cone(85.8x103mm)	1
06	Screw Nut	1	20	Double Taper Cone(38x42mm)	1
07	Square Wrench	1	21	Double Taper Cone(39x43mm)	1
08	Open-end Wrench	2	22	Double Taper Cone(48x52mm)	1
09	Spring	1	23	Double Taper Cone(57x62mm)	1
10	Spacer	3	24	Double Taper Cone(67x71mm)	1
11	Silencing Belt	2	25	Clamp(95mm)	2
12	Hanging Board	1	26	Clamp(116mm)	2
13	Screw	3	27	Clamp(145mm)	2
14	Taper Cone(36x57mm)	1
