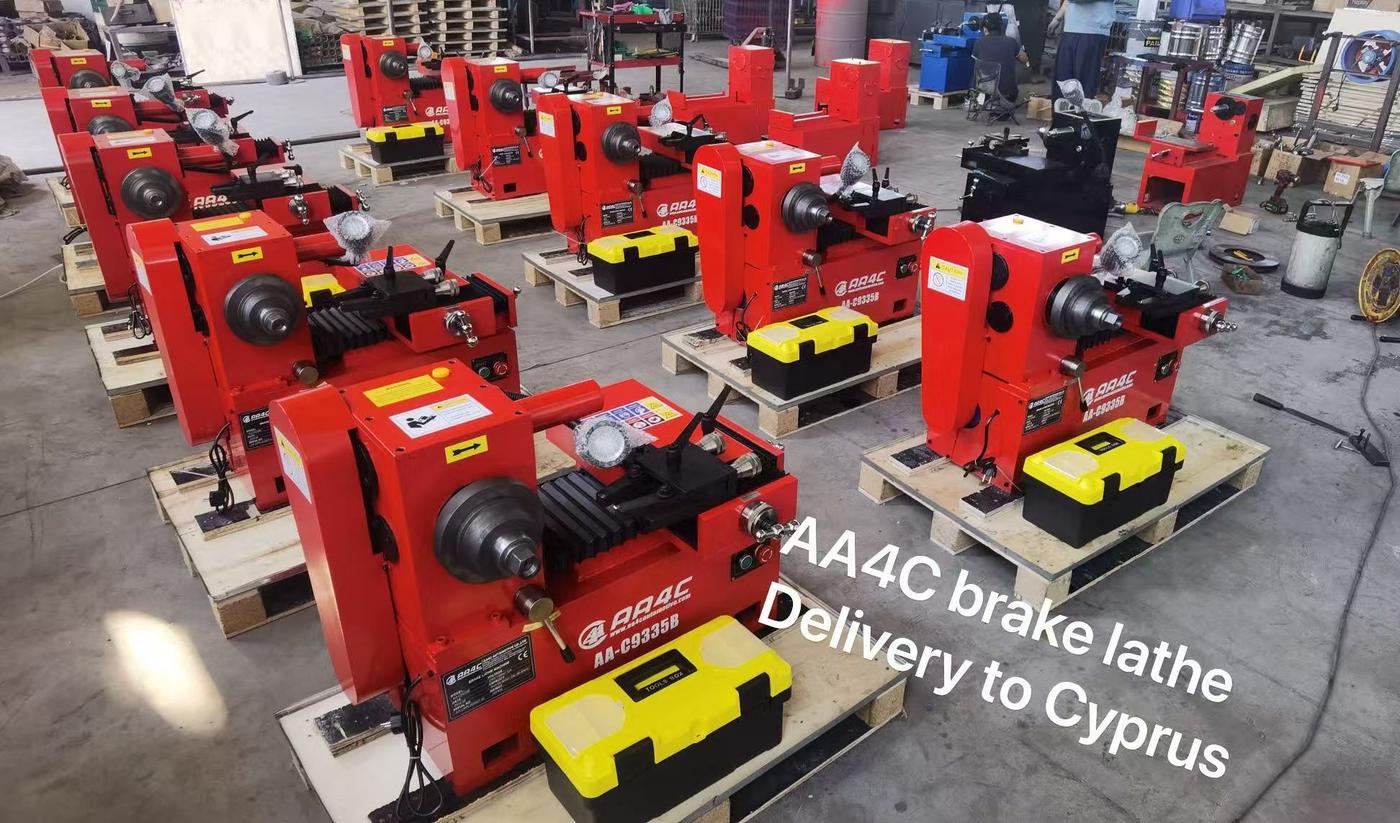

Brake Drum/Disc Cutting Machine AA-C9335B with dual cutter

  • AA-C9335B
  • Brake Drum/Disc Cutting Machine AA-C9335B with dual cutter

Description

C9335B Brake Drum/Disc Cutting Machine with dual cutter

1.C9335B adopts the powerful AC motor of 1.1Kw, which can meet the demanding requirement of
industrial motion.
2.Independent operation of cutting disc and drum.
3.It has two grades of revolution speeds to choose, which will meet the needs of cutting
discs and drums of different diameters.
4.Specially-designed taper cones for both discs and drums, which will ensure the cutting
precision.
5.The machine is equipped with a twin cutter, which will achieve simultaneously cutting both
sides of the disc and increase the cutting efficiency.
6.The machine has the cast iron body of small size and solid structure, covering less space.
7.The Simple ergonomic controls are designed for minimal operator movement, reducing the
operation and easy to learn.
8.The machine is equipped with lighting and ensure the working area well-lighted.
9.The machine is equipped with a limit switch. The machine will stop automatically when the
slide carriage touches the limit switch during auto-running.
10.The electrical device adopts the products of Delixi brand and ensures the product quality.

Technical data

Drum dia. Capacity

Φ180-Φ350 mm

Slide travel

100 mm

Rotational speed of spindle

60 , 90 r / min

Feed

0.15 mm / r

Motor power

1.1 Kw

Overall dimensions (L×W×H)

695×565×635 mm

Packing dimensions (L× W×H)

850×620×750 mm

N.W./G.W.

240 / 260 kg
