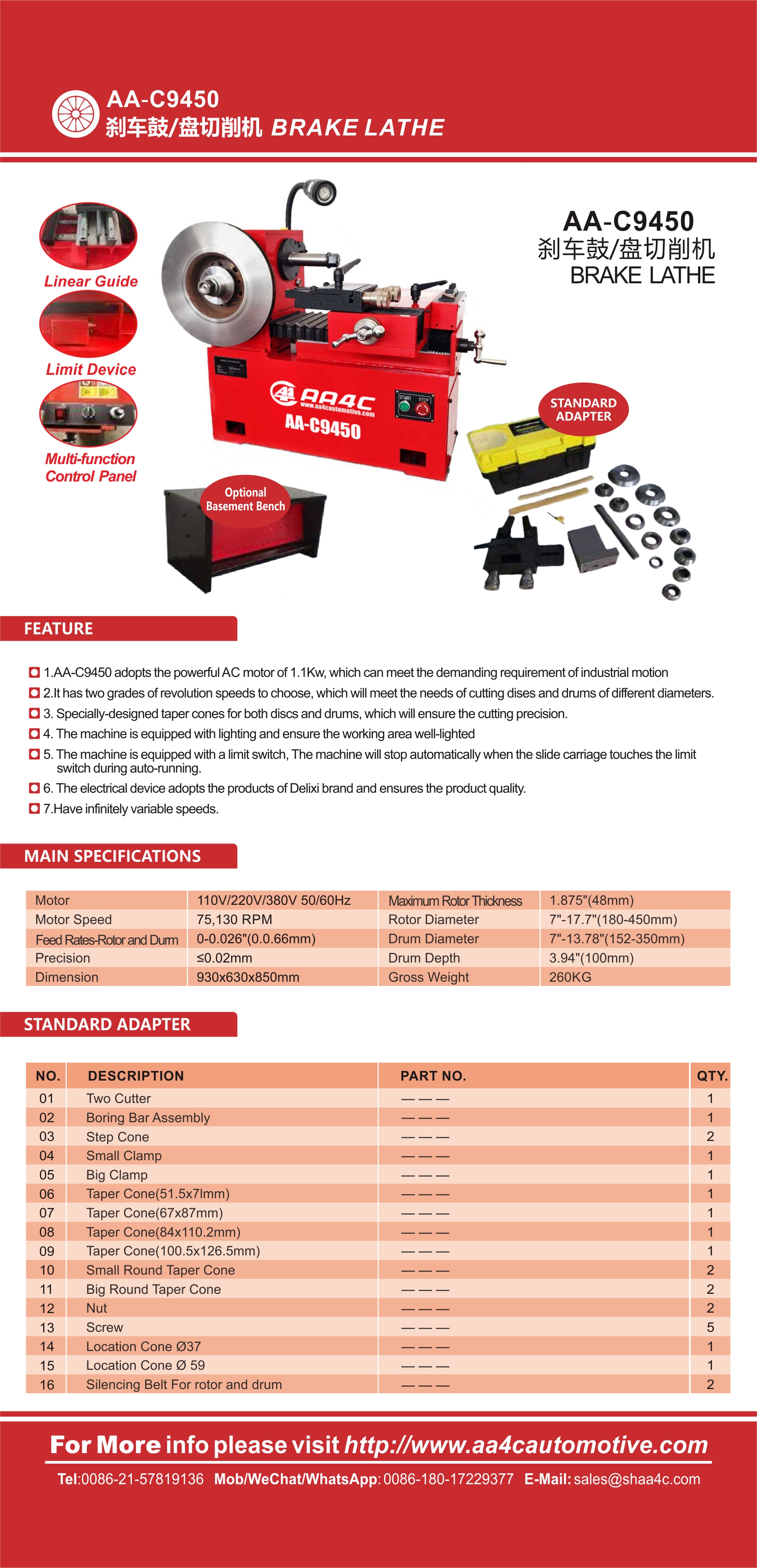

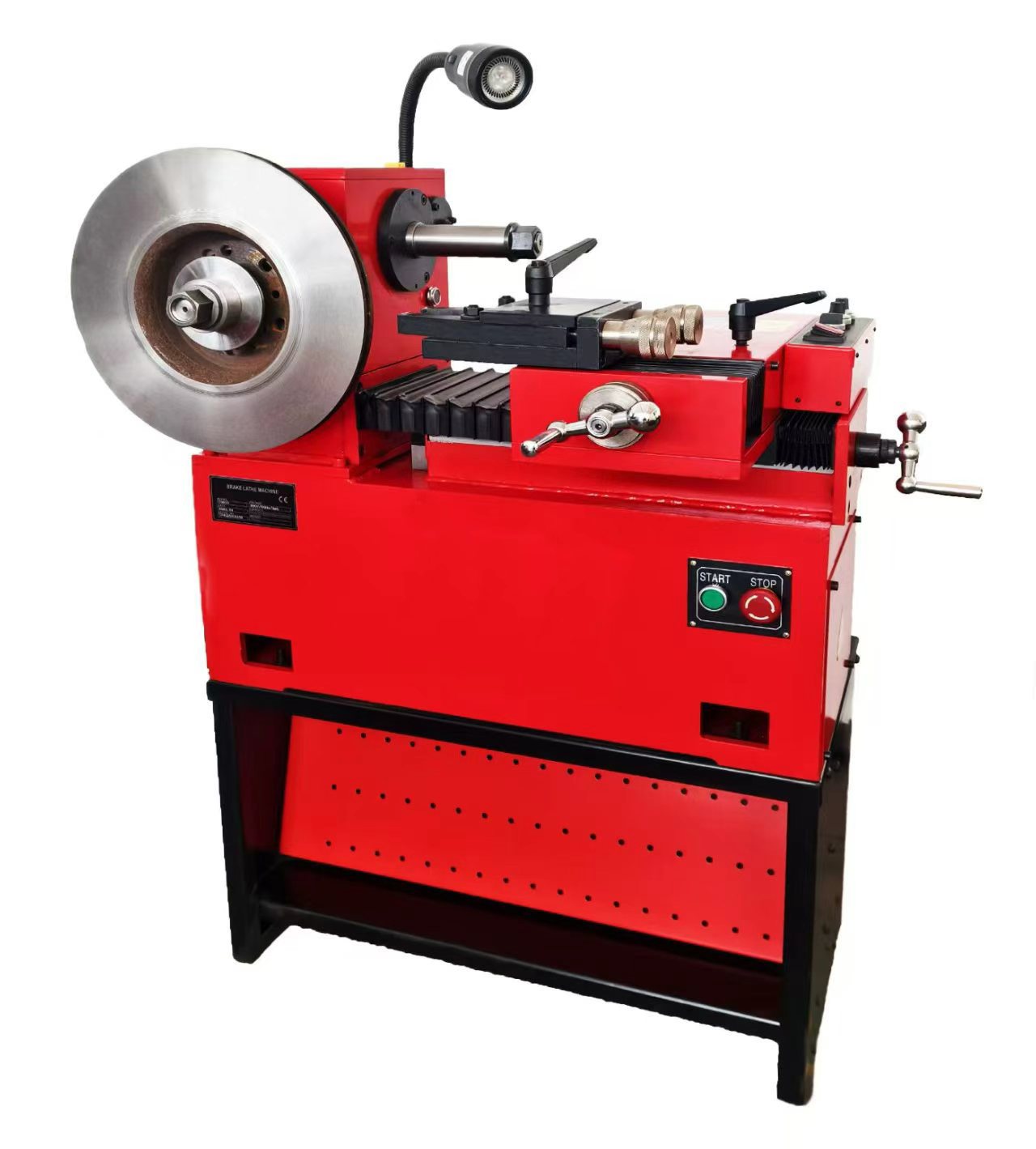

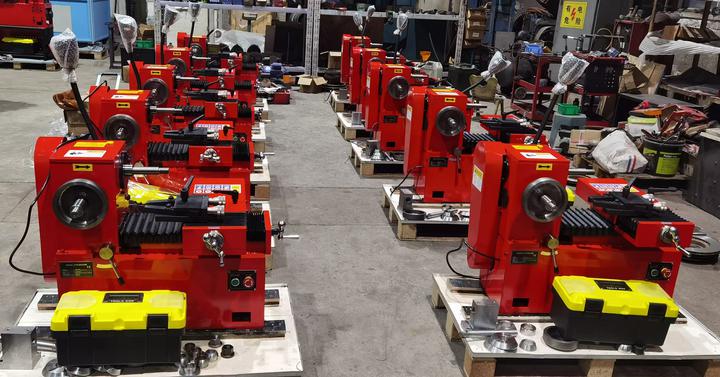

AA4C brake drum /disc lathe machine AA-C9450 450mm infinitely variable speeds. Automatically feeding and unfeeding

ITEM NO.: AA-C9450
DESC: AA4C brake drum /disc lathe machine AA-C9450 450mm infinitely variable speeds. Automatically feeding and unfeeding
Packed Size:
Color:
Voltage:
Quantity:

Description

AA4C brake drum /disc lathe machine AA-C9450 450mm infinitely variable speeds. Automatically feeding and unfeeding

Specifications

Motor	110V/220V/380V-50Hz/60Hz	Maximum Rotor Thickness	1.875"(48mm)
Motor Speed	750/1300RPM	Rotor Diameter	7"-17.7"（180-450mm）
Feed Rate-Rotor and Drum	0.002" (0.06mm)	Drum Diameter	7"-17.78"（152-350mm）
Precision	≤0.020mm	Drum Depth	3.94"（100mm）
Dimension	930x630x850mm	Gross Weight	260KG

Feature

1. C9450 adopts the powerful AC motor of 1. 1Kw, which can meet the demanding requirement of industrial motion.

2.It has two grades of revolution speeds to choose, which will meet the needs of cutting discs and drums of different diameters.

3. Specially-designed taper cones for both discs and drums, which will ensure the cutting precision.

4. The machine is equipped with lighting and ensure the working area well-lighted.

5. 'The machine is equipped with a limit switch. The machine will stop automatically when the slide carriage touches the limit switch during auto-running.

6. The electrical device adopts the products of Delixi brand and ensures the product quality.

7.Have infinitely variable speeds.

Name	Quantity	Name	Quantity
Two Cutter	1	Small Round Taper Cone	2
Boring Bar Assembly	1	Big Round Taper Cone	2
Step Cone	2	Nut	2
Small Clamp	1	Screw	5
Big Clamp	1	Location Cone Φ37	1
Taper Cone(Φ5.1x17mm)	1	Location Cone Φ99	1
Taper Cone(Φ24x76mm)	1	Slitting Belt For rotor and drum	2
Taper Cone(Φ45.1x20mm)	1
Taper Cone(Φ100.5x126.5mm)	1
