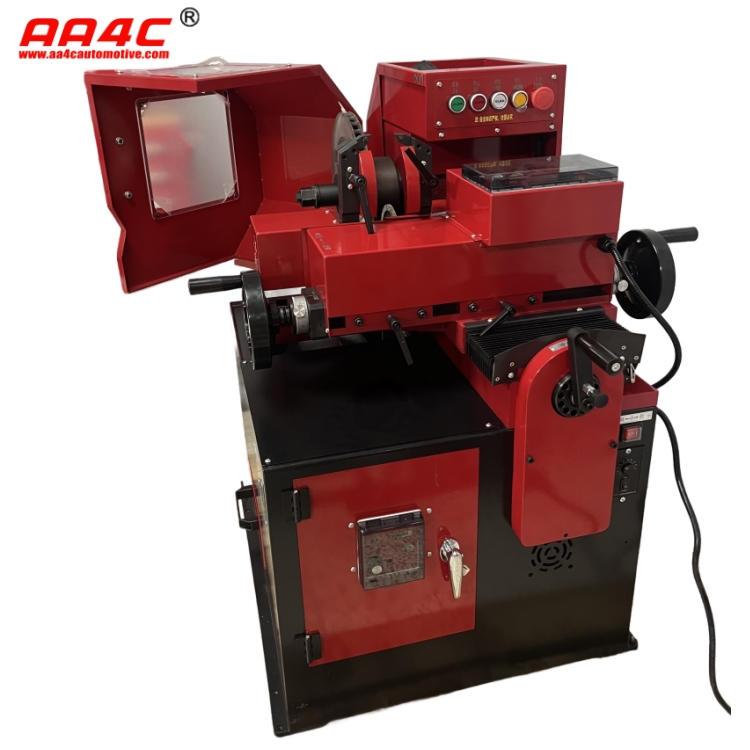

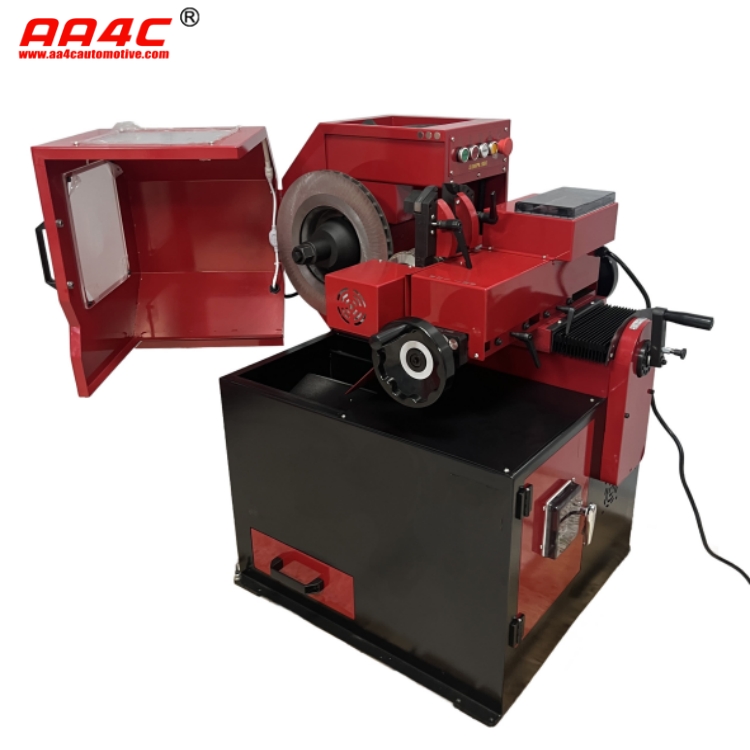

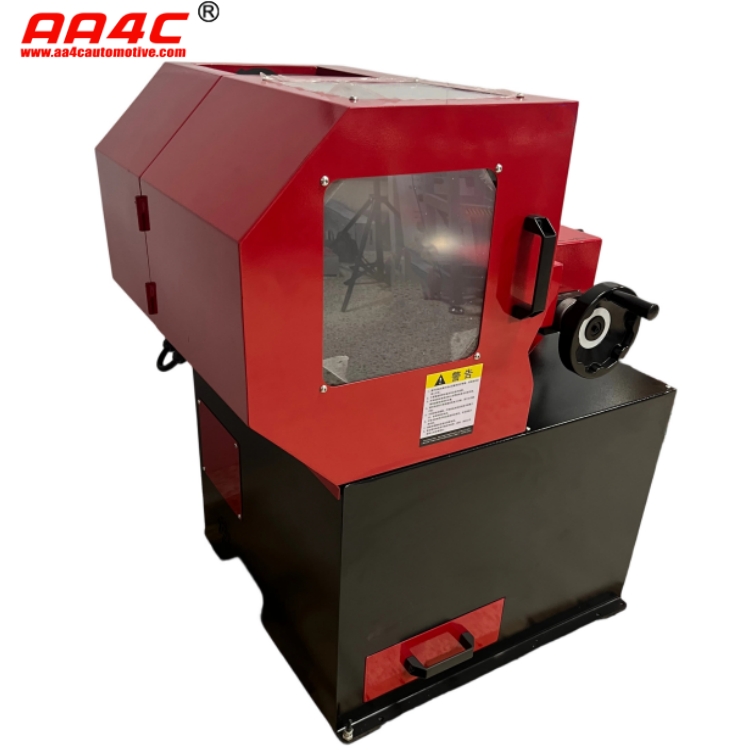

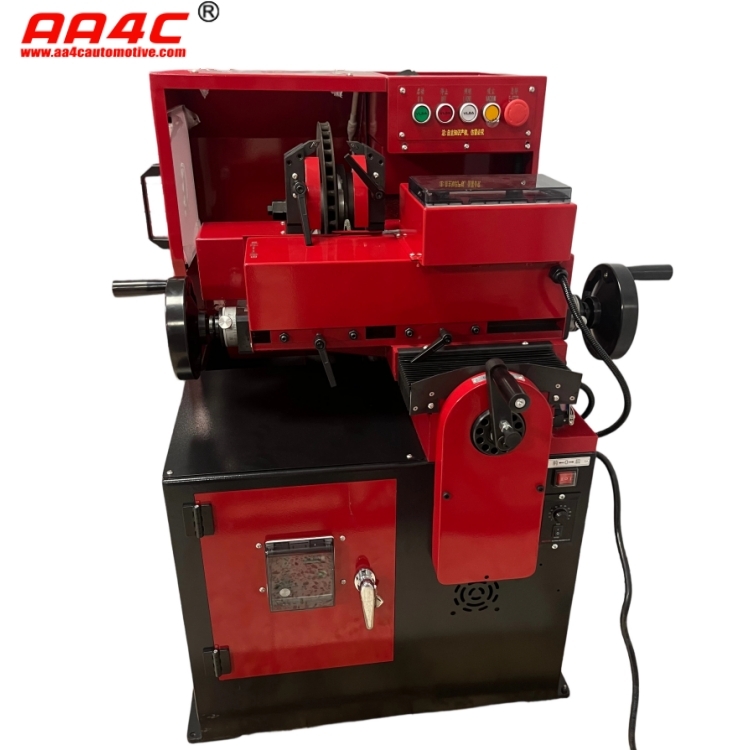

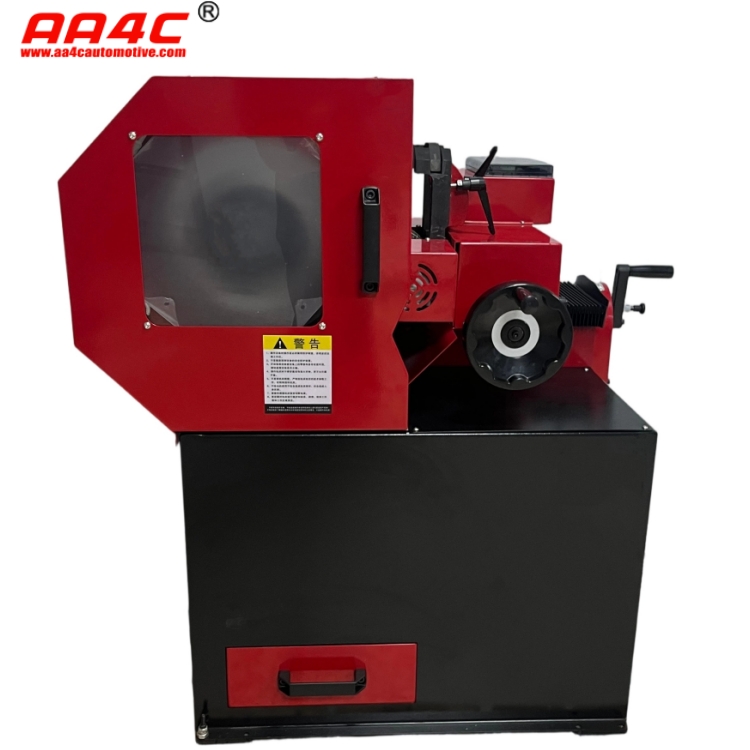

AA4C Vehicle Brake Disc Grinding & Lathe machine double side processing AA-C9800

ITEM NO.: AA-C9800
DESC: AA4C Vehicle Brake Disc Grinding & Lathe machine double side processing AA-C9800
Packed Size:
Color:
Voltage:
Quantity:

Description

AA4C Vehicle Brake Disc Grinding & Lathe machine double side processing AA-C9800

Advantage

1.Large-size brake disc grinding without any vibration.

2.Precise grinding

3.High mechanical strength

4.High production efficiency(one brake disc in 15 minutes).

5.Single grinding takes only 2 minutes per disc.

6.Restored brake discs regain factory patterns after repair.

7.Simple and easy to operate.

Parameters

Operating height	750mm
Spindle motor voltage	220V/110V
Spindle motor power	750W
Spindle speed	130rap
Walking knife motor voltage	220V/130V
Walking knife motor power	220W
Dimension	900x620x980mm
package size	1100x850x1260mm
Maximum brake disc diameter	500mm
Maximum thickness of the brake disc	110mm
Brake disc cutting surface accuracy	0.01mm
Brake disc repeated assembly and disassembly tolerance	<0.03mm
Max cutting amount	50丝(0.5mm)
Weight	300kg
