Vertical Honing Machine M4215-1

ITEM NO.: M4215-1
DESC:
Packed Size:
Color:
Voltage:
Quantity:

Description

MB4215-1

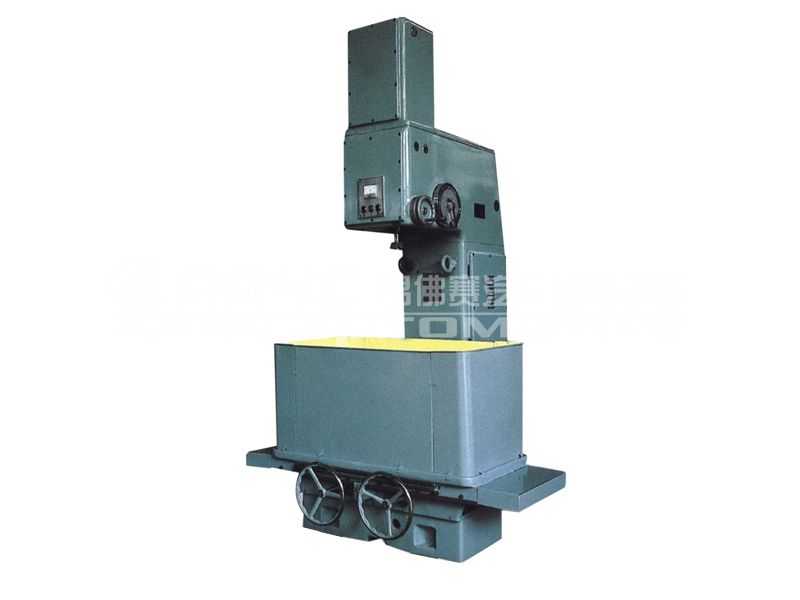

Vertical Honing Machine

This machine is simple structure, easy operation and high working accuracy. Reciprocation of honing head is hydraulically driven. Expansion and contraction of honing head is controlled by the feed handwheel directly. This machine is used for honing of cylinder block bores, cylinder liner bores, hydraulic cylinder bores precision bores etc. Roundness 0.0025mm and surface finish Ra 0.4 can be obtained. Bore taper can be corrected by using short stroke.

Main specifications

Model	M4215-1

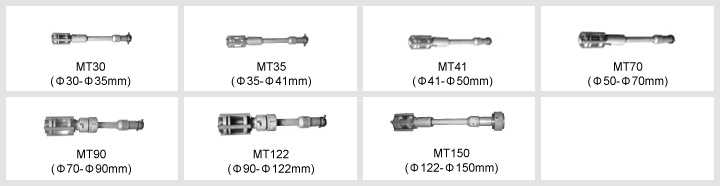

Honing diameter	Φ30-Φ150 mm
Max. Honing depth	400 mm
Spindle speeds (4 steps)	140 200 288 400 r/min
Max. spindle travel	370 mm
Telescopic displacement length of spindle connecting rod	180 mm
Spindle reciprocation speed	3-18 m/min
Distance between spindle axis and column face front surface	350 mm
Workable travel (Longitudinal/traverse)	800/60 mm
Workable surface size (L×W)	480×1100 mm
Max. Working pressure of hydraulic system	25 bar
Total output	4.5 Kw
Motor for spindle rotation	2.2 Kw
Overall dimensions (L×W×H)	1320×1680×2675 mm
Packing dimensions (L×W×H)	3000×1550×1650 mm
N.W./G.W.	2800/3500 kg
