Operation Video

Characteristics of the System

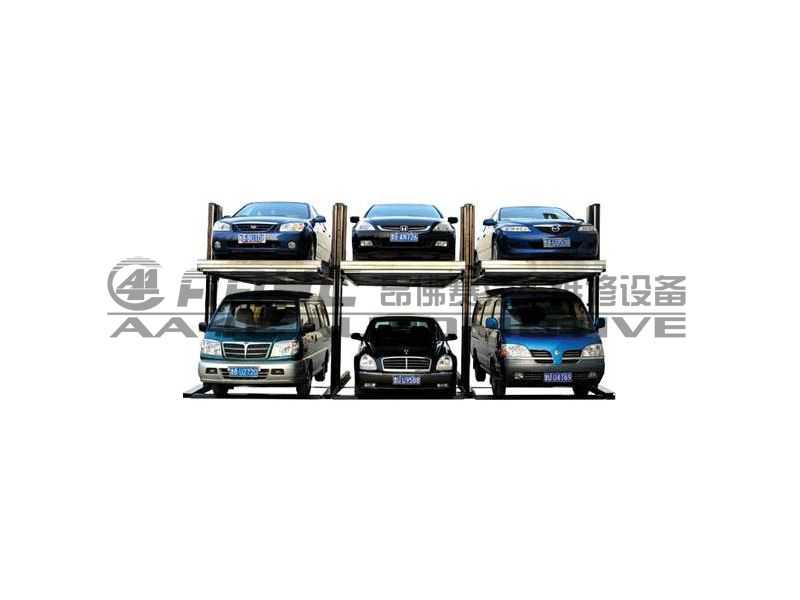

1. Two columns and N+1 columns design; More columns together, more economic;
2. Multi-safety protection devices to guarantee a safe operation;
1) Double sides auto-unlock device;
2) Anti-fall devices
3) Mis-entrance warning device (optional);
4) Over length and over height warning device (optional);
5) Low voltage, lack of phase, overflow, over loading protection devices (optional);
6) Self-lock protection device when electricity is off (Optional);
7) Emergency stop device;
3. PLC auto control, Manual button, IC card, Remote control, more optional way;
4. Adopt multi-grades cylinder lift, advanced technology; Hydraulic drive with low noise and steady operation;
5. Car pallet is hot galvanized or sprayed coating with long life use; also has functions against oil leakage, dirty water and
mud pollution the lower car;
6. The oil drip pan design can protect the bottom car against motor leakage oil and water mud pollution in snow and rain
weather.
7. There is not any columns and and hanging devices in front of the system, it is easy for car in and out.

Parameters
