AA-ACR288EL is rectangular tube platform, and the thickness of rectangular tube is 6mm as per repair requirement of a variety of models at home and abroad, which improved in welding technology, choosing material, equipment parameters and stress intensity, etc. Precise, faster, non-working blind, be in accord with the technician habit, high grade configuration and more convenience for operation. It is particularly suitable for all kinds of import cars, commercial vehicle and SUV which need intensive stretching.

Length

5600MM

Width

2100MM

Height

520MM

Pulling capacity

95KN

Rated voltage

220/380V

Air Supply Required

0.8MPA

Radius of pulling

360°

Max. load

3500KG

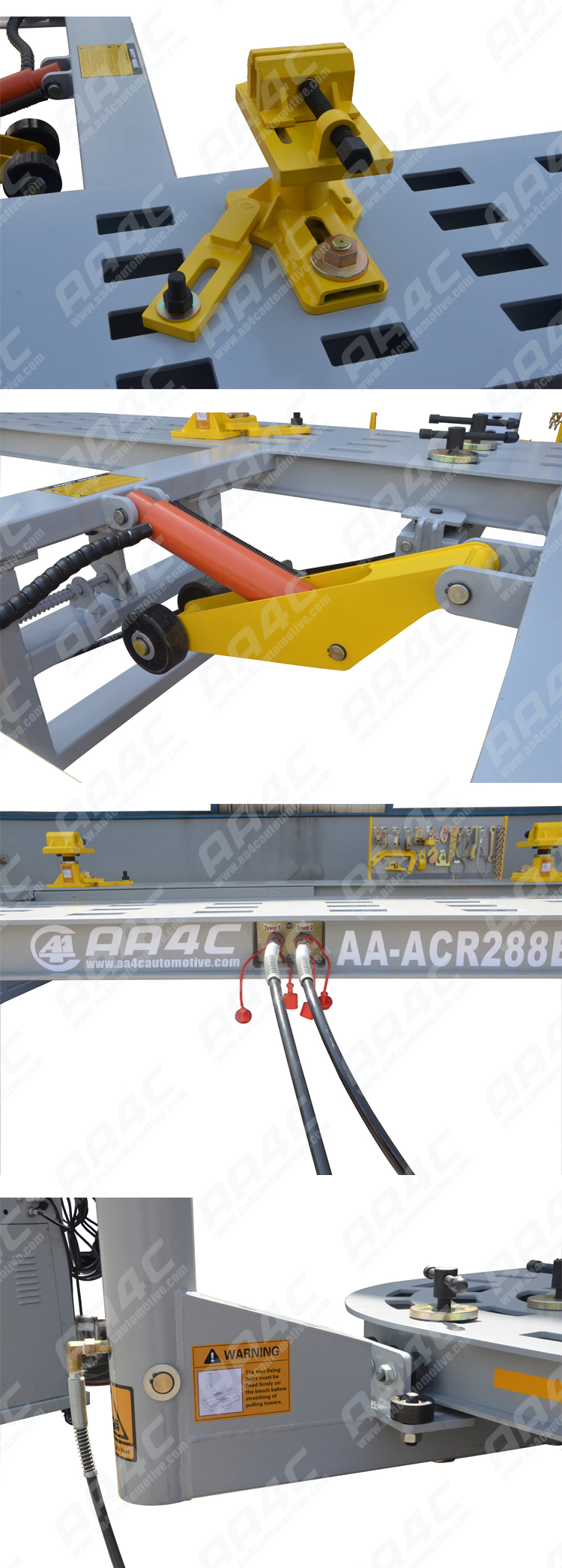

1. The platform is rectangular tube platform, and the thickness of rectangular tube is 6mm, welded full board of many positioning holes surround the platform, the tolerance is small for flatness, strength is big, and many station holes is convenient for fixing any tools, no tensile dead zone.

2. Tilt hydraulic lifting platform makes the accidental vehicle loaded and unloaded more convenient(even drive the car onto the platform directly).

3. The pulling towers can work along the track for 360° rotation, operated more convenient. The pulling towers pull strong each other and highly active, and the material is made of the 10mm wall thickness seamless pipe.

4. The jaw of main clamps, spiral movements, in the jaw to maintain the level of state, the upper and lower pole vertically movements, fine-tuning the level of all kinds of different vehicle chassis height of rapid adjustment.

5. The function of leading arm: provide stretching for any point and any directions during the collision repair process, provide powerful up stretching.

6. High Precision alloy measuring system, it is made of special aluminum. It can make three-dimensional coordinate measure, so that make the car body size is same as the original car.

7. Allocate one centralized electric control cabinet. Remote control: A key in hand, operate freely.

8. Remote controller: Make the platform lift, please press “up” key; make the platform down, please press the “down” key. When you need the tower up and down stretching, please press “tower one” key or “tower two” key.

9. The global data synchronization by Mitchell and the major automotive companies provide and maintain the latest data models.

10. Perfect service system, completely relieve your worries.

1.2M Chains
X 2 Pcs

Small clamp
X 1 Pcs

Mini clamp
X 1 Pcs

Wide clamp
X 1 Pcs

C - clamp
X 1 Pcs

Right angle clamp
X 1 Pcs

Big bending hook（1-3）
X 1 Pcs

Deep hook
X 1 Pcs

Slotted chain anchor
X 2 Pcs

Multi hole pull plate
X 1 Pcs

Nylon sling
X 1 Pcs

Steel wire
X 1 Pcs

Handy link
X 1 Pcs

Crescent spanner
X 1 Pcs

Hand clamp
X 1 Pcs

Double connector
X 1 Pcs

Strut puller kit
X 1 Pcs

Scissor clamp
X 1 Pcs

Down-pulling Device
X 1 Pcs

Use of winch
X 1 Pcs

Wheel bracket
X 2 Pcs
