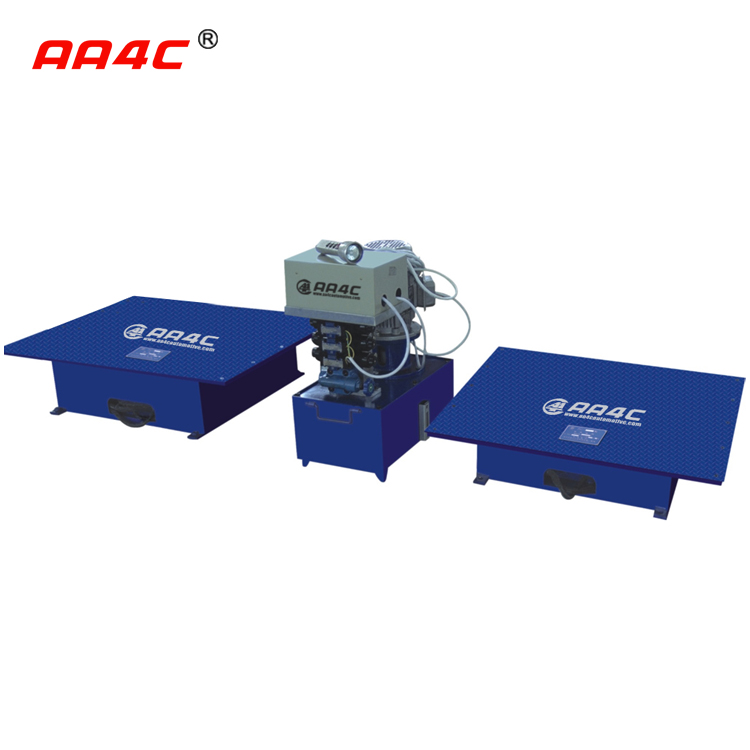

The tester is convenient to check the fitting clearance between the parts of the automobile suspension and steering system. Place the front or rear wheels of the car on two test boards of the machine,It can remotely control two test plates to do longitudinal and lateral movement, and can check the clearance of automobile horizontal tie rod, ball head, steering arm, Xuan wheel bearing, etc. The play detector, with two moving plates of play detector, is assisted to verify the joint play condition in a vehicle chassis. The play detector is made by three parts: 2x moving plates, hydraulic system and electric control system (with wireless remote & torch)
 Hydraulic unit increases user convenience

 Extra heavy duty structure, robust and lower noise design

Hydraulic drive;Direction of movement:6,Left board: front, back, left and right
Right board: front and rear;The wireless remote control;Motor power (kw):3;Max. displacement force of plate (kN):20;Movement of plates (mm):±50;Power supply (V):380;Plates dimensions (mm):1000*750;Max. axle load (kg):13000

Hydraulic drive;Direction of movement:6,Left board: front, back, left and right
Right board: front and rear;The wireless remote control;Motor power (kw):3;Max. displacement force of plate (kN):20;Movement of plates (mm):±50;Power supply (V):380;Plates dimensions (mm):760*500;Max. axle load (kg):3000
