X-431 PAD5 X-431 PAD V Advanced car Diagnostic Scanner

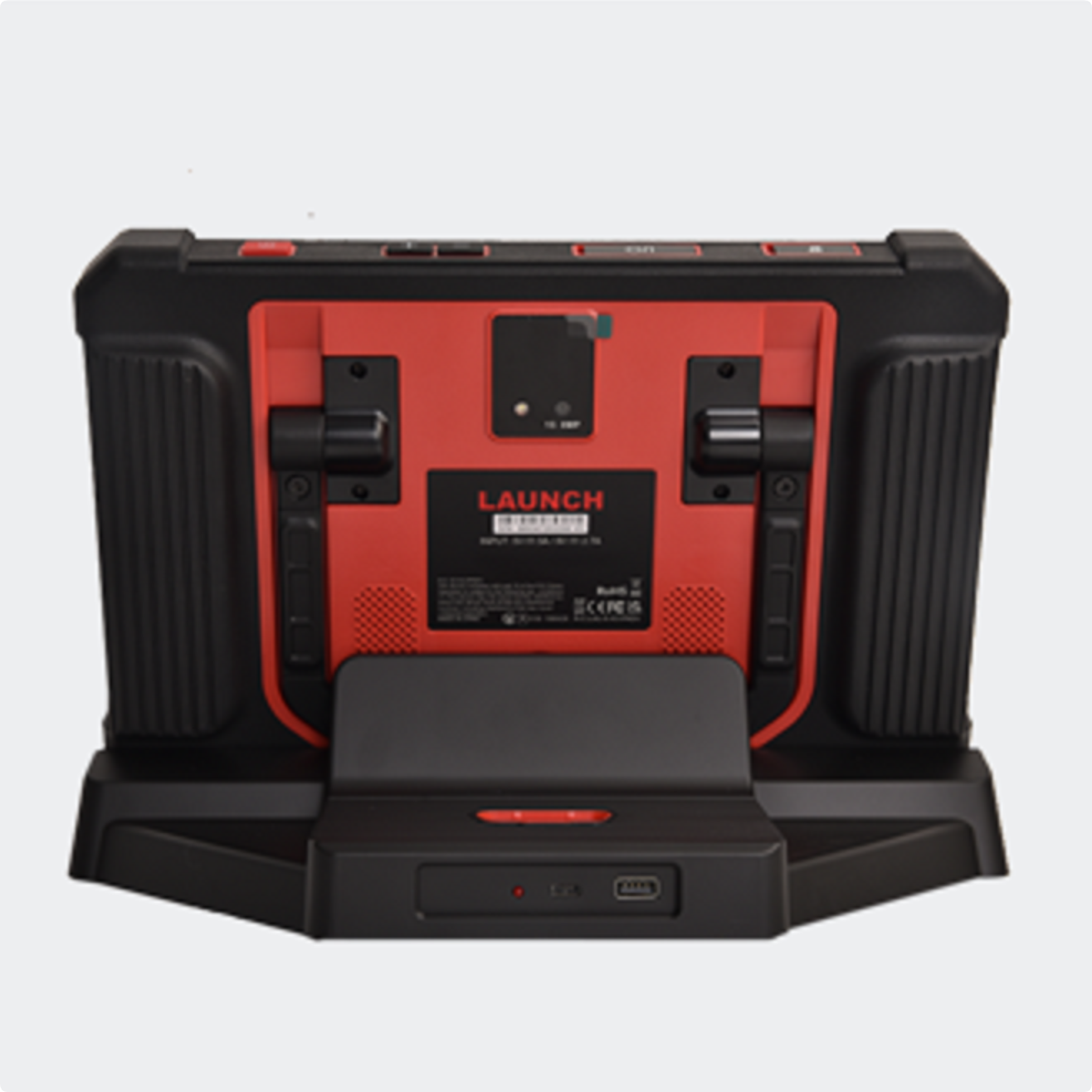

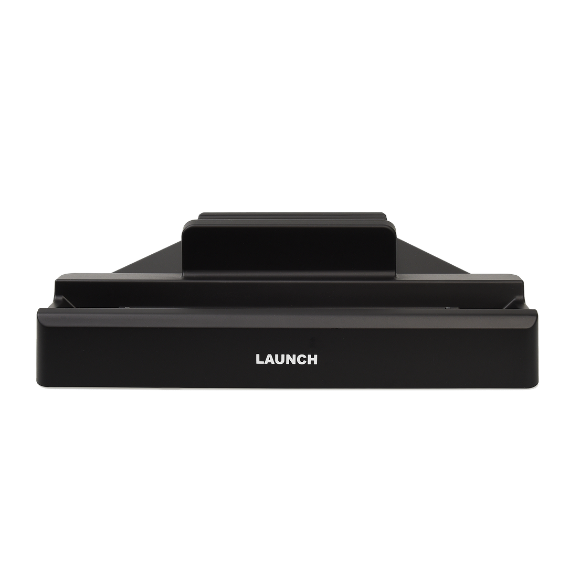

The X-431 PAD5 LINK is a high-end professional diagnostic tool with an optional charging base newly developed based on the Android 7.1 open system. It comes with ADAS calibration functions, 41 service functions, TPMS services, and other extended modules functions. The IP65 case is waterproof and dustproof to best protect the scan tool for use longer. All these unique features will offer you a luxury experience of vehicle diagnosis.

Features

1. Topology mapping lets you visual check the DTCs and all systems communication status.
2. Enables you to diagnose light, medium & heavy duty (optional) vehicles with the Smarlink C.
3. Supports X-431 Fix database to fix the problems fast.
4. Full system vehicle coverage for U.S., Asian and European markets over 110 manufacturers, which is continually updated.
5. Real-time voltage display is supported, which helps you monitor the voltage condition of the vehicle during the diagnosis.
6. Supports automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210.
7. Auto-detects the communication protocols of the vehicle to check if there is any OBDII port pins damaged or not.
8. Intelligent diagnostic enables automatic VIN identity to automatically access systems quickly.
9. Intelligent and local diagnostic, which include full diagnostic functions, such as read/clear DTC, live data streaming, bi-directional control, coding, programming, etc.
10. Guided functions for Volkswagen and Audi.
11. Optional ADAS calibration function increases more revenue.
12. Advanced coding and programming function.
13. An extended solution to support TPMS service.
14. The software is available to purchase separately on the MALL at any time.
15. Built-in repair information and training videos help to track and fix issues fast.
16.


17. Specification

    X-431 PAD5 LINK
    OS	Android 11
    Display	10.1", 1920*1200 sunlight readable screen, gorilla glass
    CPU	2.0GHz, Octa-core
    Memory	4GB
    Storage	256GB
    Battery	9360 mAh
    Camera	Rear 13MP, Front 8MP
    VCI Connection	2.4GHz/5GHz dual WiFi
    Dimensions	320*211*46 mm
    Interface	TYPE A*1 & TYPE C*1

    SMARTLINK C V2.0
    Display	3.95'', 320*480
    Memory	256M
    Storage	8GB
    Remote Communication	Local Diagnosis: WiFi/BT/USB SmartLink Remote Diagnosis: WiFi/Ethernet
    Working Voltage	9V DC ~ 36V DC
    Dimensions	200*110*47 mm
