Manual  play detector chassis clearance tester

Product Features:

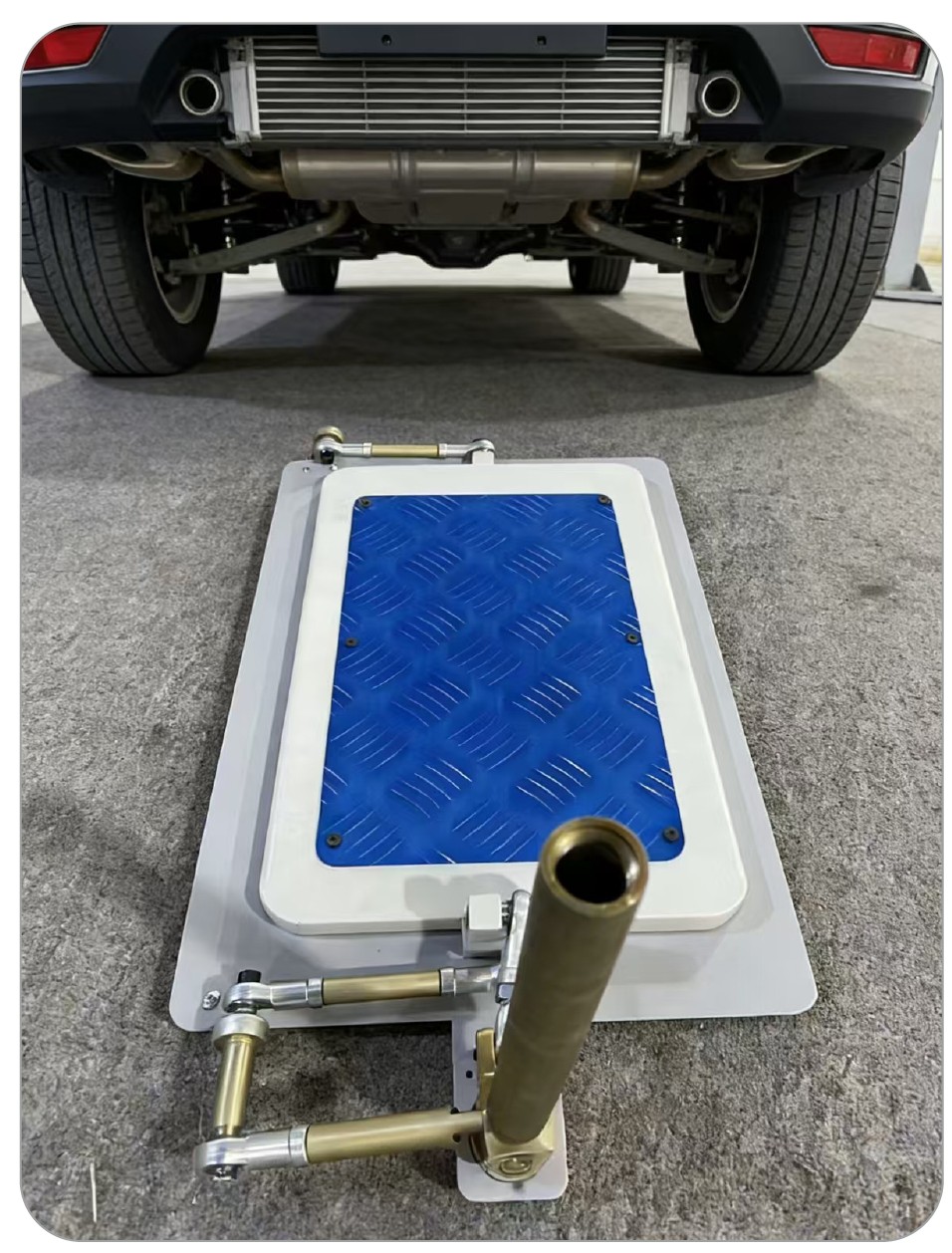

The strong force generated by the vehicle chassis joint activity detector is applied to the entire car to detect the
shock absorber tray and foot pedal support, as well as the engine frame. The detection wheel side can smoothly
apply pressure to the chassis under the compression of the shock absorber, and the wheel side can be reliably
detected at any time. Especially for those difficult to detect, such as the large rubber metal parts of the rear axle, the
detection is precise and reliable. It can also be applied to multi link suspensions to create push-pull motion to wedge
the stabilizer bar linkage, making the detection of car chassis faults safer, simpler, and faster.

Main components:

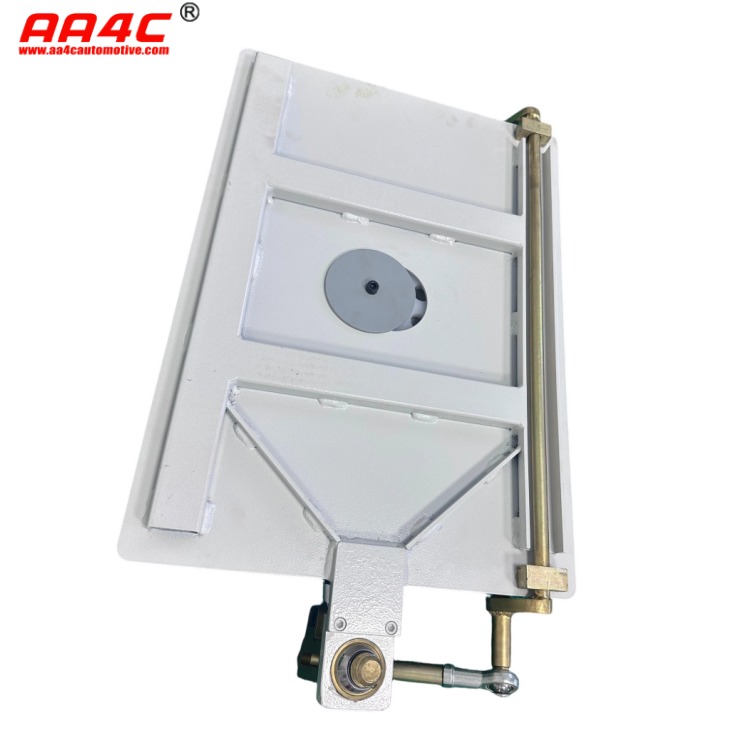

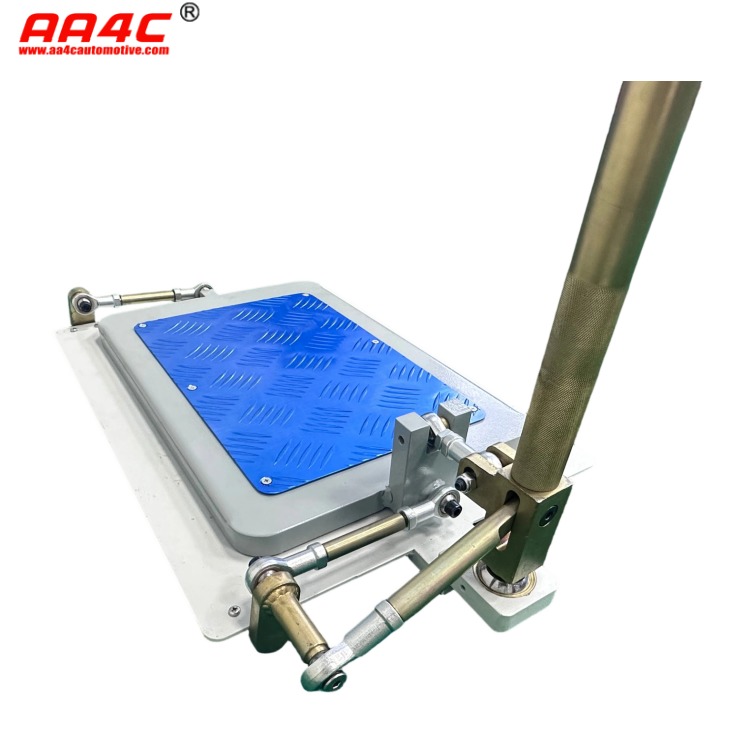

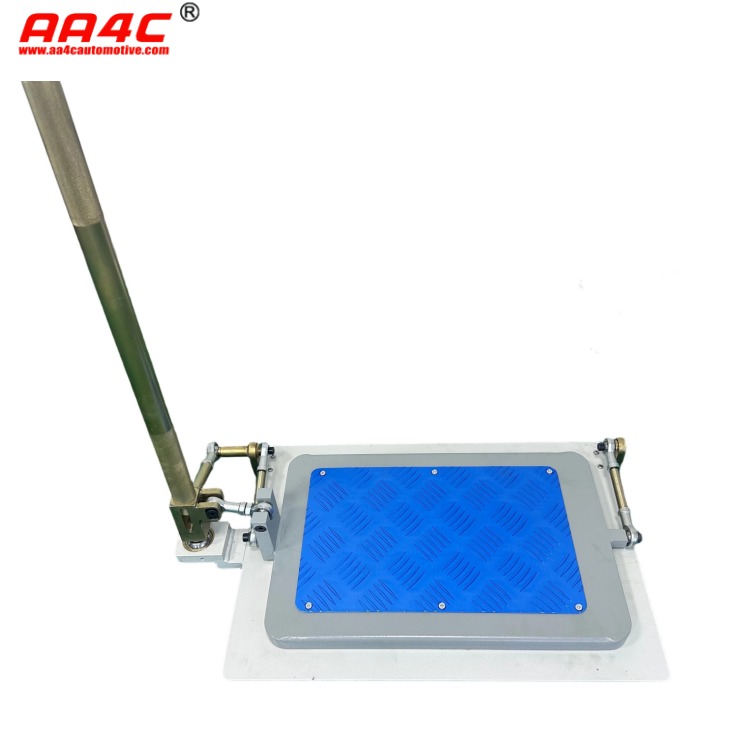

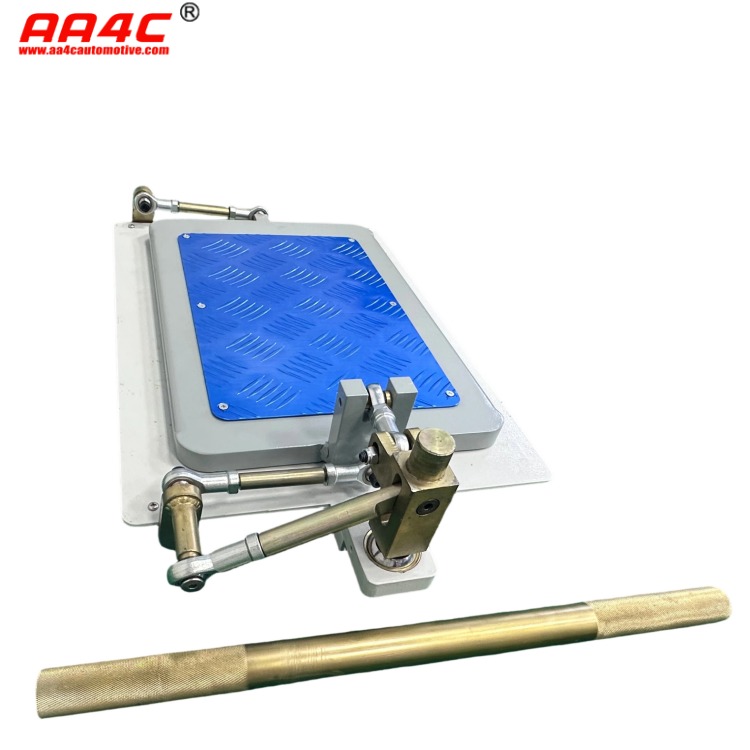

The base plate,movable plate(with anti slip pattern plate),and
swivel universal bearing and handle are composed of three parts,
which can simulate the displacement of the vehicle chassis in front,
back, left, and right directions with one person and one workstation.

Technical Specifications:
Overall dimensions: 59CM*40CM*5CM
Package dimensions :76cm*46cm*19.5cm
Movement range : 5.5-6.0cm;
