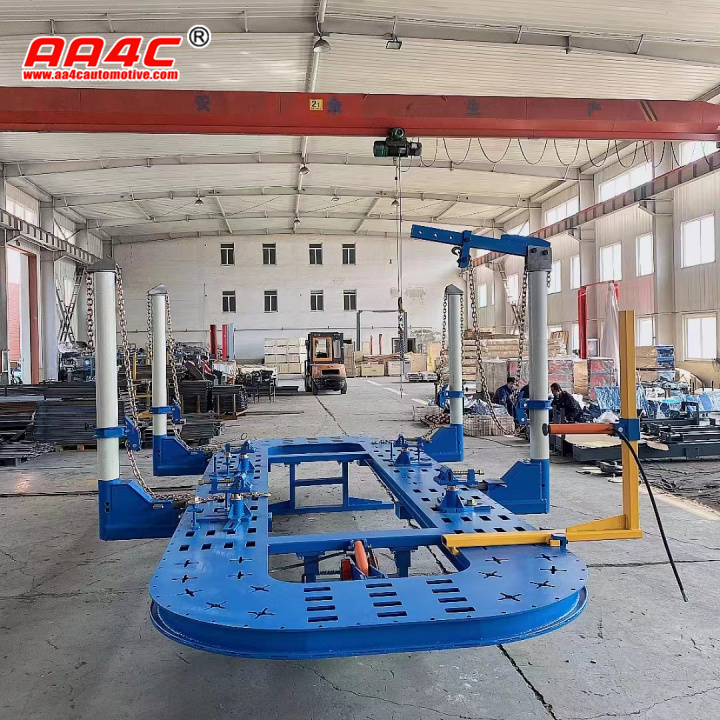

Car repair bench auto chassis collision repair system AA-ACR388E with 4 towers

  • AA-ACR388E
  • Car repair bench auto chassis collision repair system AA-ACR388E with 4 towers

Description

Car repair bench auto chassis collision repair system  AA-ACR388E with 4 towers

1. AA-ACR399 is a flat plate and square hole working platform which is researched and designed by ourselves according to the repair requirement of a variety of models at home and abroad, which has many improvement in welding technology, choosing material, equipment parameters and stress intensity and so on. It is very precise, faster, non-working blind, be in accord with the technician habit, high grade configuration and more convenience for operation. It is particularly suitable for all kinds of import cars, commercial vehicle and SUV which need intensive stretching.
2. The platform is a flat plate and square hole working platform which is firstly designed and researched in domestic by ourselves. It conforms to operating requirement, usage and security of technician at home and abroad. Working platform adopts excellent quality 14# GB I-beam, CNC plasma cutting, Panasonic CO2 welding, shot-blasting machine to scale and welding slag and electrostatic painting which ensured the requirement of using intensity, rusting prevention and appearance and so on.

Specification

Length

6000MM

Width

2200MM

Height

300-1500MM

Pulling capacity

95KN

Air Supply Required

0.8MPA

Radius of pulling

360°

Max. load

3500KG

Features


1. Horizontal hydraulic lifting platform makes the accidental vehicle loaded and unloaded more convenient(even drive the car onto the platform directly). Lifting frame has double security of hydraulic and mechanism. The lifting range is 300mm-1500mm in which can be adjusted.


2. The tower can be rotated 360 degree along the platform which is operated more convenient, more intensity. The material use 10mm seamless pipe.


3. The unique design of the main clamps spiral movements, in the jaw to maintain the level of state, the upper and lower pole vertically movements, fine-tuning the level of all kinds of different vehicle chassis height of rapid adjustment. The jaws of main clamps unique adjustable design, only two screws, the thimble jaws, a variety of auto models that the rapid clamping firm to improve work efficiency.


4. The tools mechanical streamline design, after metal, heat treatment process, long service life and high-intensity, almost considered all deformation correction.


5. The leading arm can supply multi-direction tensile during the collision repair.


6. Three-dimensional coordinate measuring bridge (PTP) Measurement of the world's most advanced, seamless breakpoint, convenient operation.


7. Hydraulic systems is EAGLE PRO pump.


8. The global data synchronization by Mitchell and the major automotive companies provide and maintain the latest data models.


9. Perfect service system, completely relieve your worries.









Tool board list


1.2M Chain with rake body
X 2 Pcs

Small clamp
X 1 Pcs

Mini clamp
X 1 Pcs

Wide clamp
X 1 Pcs

C - clamp
X 1 Pcs

Right angle clamp
X 1 Pcs

Big bending hook(1-3)
X 1 Pcs

Deep hook
X 1 Pcs

Slotted chain anchor
X 2 Pcs

Multi hole pull plate
X 1 Pcs

Nylon sling
X 1 Pcs

Steel wire
X 1 Pcs

Handy link
X 1 Pcs

Crescent spanner
X 1 Pcs

Hand clamp
X 1 Pcs

Double connector
X 1 Pcs

Strut puller kit
X 1 Pcs

Scissor clamp
X 1 Pcs

Down-pulling Device
X 1 Pcs

Use of winch
X 1 Pcs

Wheel bracket
X 2 Pcs
