PSH-> Puzzle Parking 15 layers

Work Principle

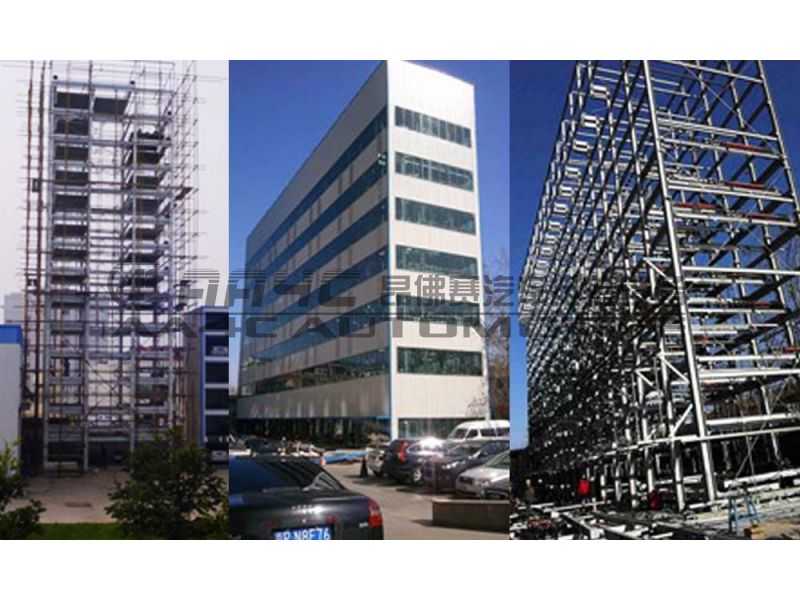

 This system is designed with 15 layers and 3 columns layout.  Total 30 spaces with a car going tunnel way in the middle. Car
parking in the left and right side by sliding to the middle tunnel and lift up and down through this tunnel. The moving speed
can reach 28m/min.  When a space needs to park or release a car, the space will slide to the tunnel way. In this case, the car
will go up and down freely.

Special Characteristics and Advantages
◆lift speed:28m/min, 5 times faster than similar.
◆Layers: 15, highest layers from other companies of similar type is only.
◆Hydraulic drive mode, creator and leader of PSH parking.
◆Saving energy. Electricity consumption is only 50% of tower parking.
◆Low cost, saving 40% investment compared with tower parking
◆High usage of land area. It can park 30 cars in 3 car spaces area.
◆Low area coverage and high usage rate of space.

Main Structure
◆Steel structure
◆Car Pallet
◆Lifting system
◆Sliding system
◆Hydraulic system
◆PLC control system
◆Safe-guard system

Technical Parameters
