AA4C LOW PROFILE ELECTRIC LIFT TABLE "U" TYPE ELECTRIC LIFT TABLE

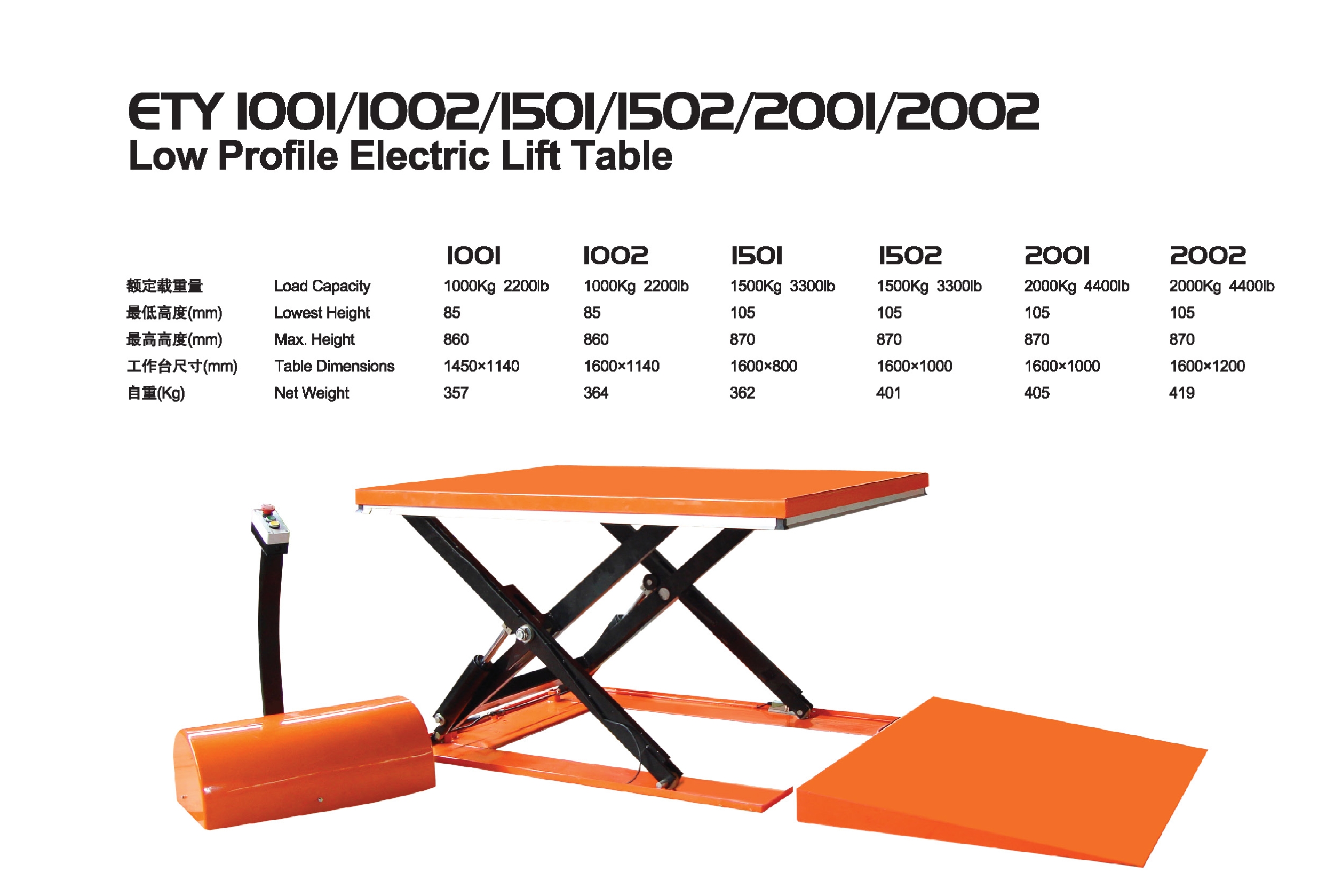

Item no.：	ETY 1001/1002/1501/1502/2001/2002
		1001                1002              1501               1502                 2001                 2002
Parameters:	Load Capacity	1000Kg 220lb /1000Kg 2200lb /1500Kg 3300lb/ 1500Kg 3300lb/ 2000Kg 4400lb/ 2000Kg 4400lb
	Lowest Height(mm)	85                   85                    105                105                  105                    105
	Max. Height(mm)	860                 860                  870                870                   870                    870
	Table Dimensions(mm)	1450X1140     1600X1140      1600X800       1600X1000      1600X1000   1600X1200
Net Weight(kg):		357                 364                 362                401                    405                   419

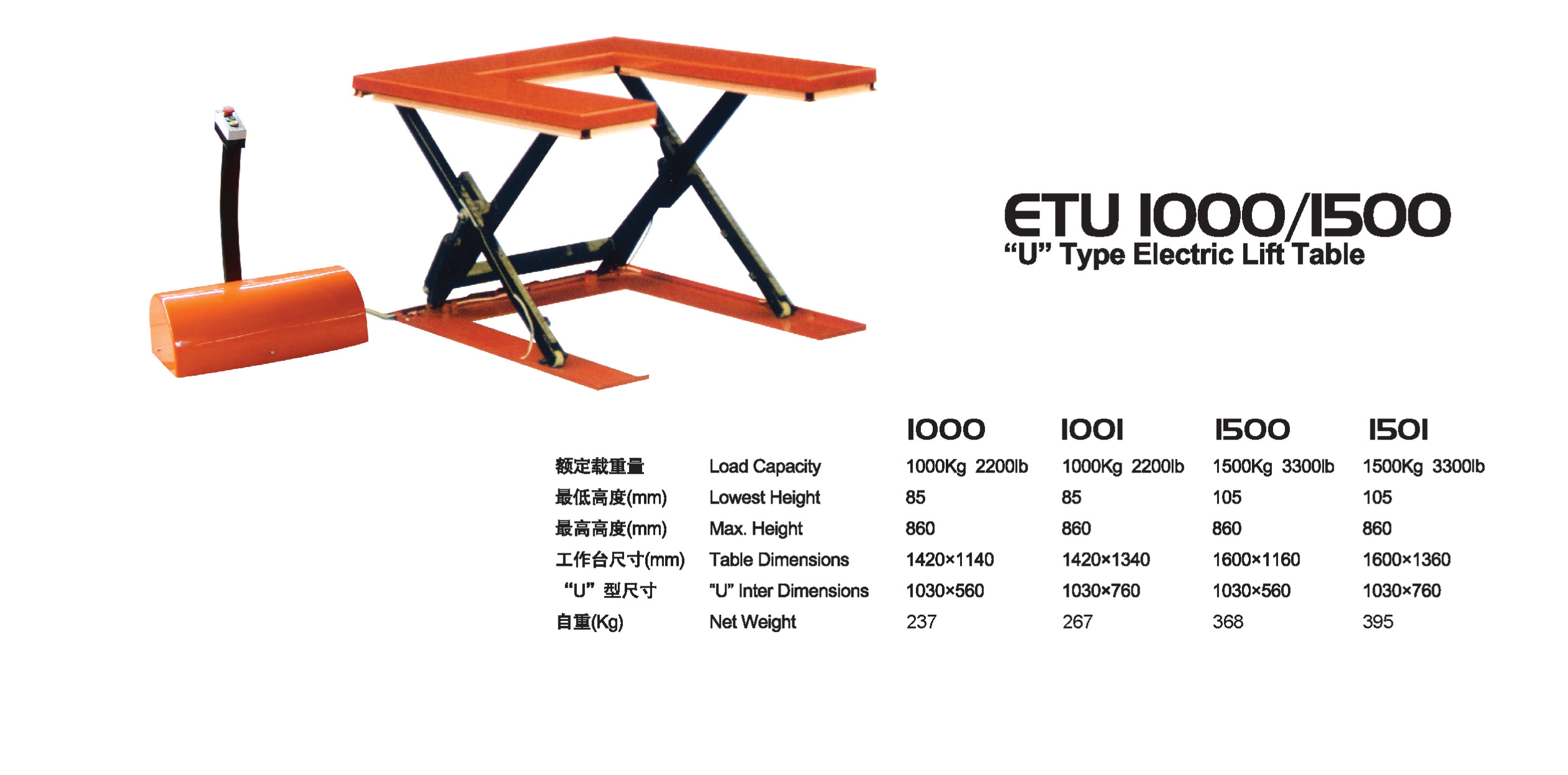

Item no.：	ETU 1000/1500
		1001                1001              1500               1501
Parameters:	Load Capacity	1000Kg 220lb /1000Kg 220lb /1500Kg 3300lb/ 1500Kg 3300lb
	Lowest Height(mm)	85                   85                    105                105
	Max. Height(mm)	860                 860                  860                860
	Table Dimensions(mm)	1420X1140     1420X1140      1600X1160       1600X1360
	"U" INTER Dimensions(mm)	1030X580       1030X760       1030X560         1030X760
Net Weight(kg):		237                267                  368                  395

Item no.：	ETYY 1501/3001
		ETYY 1501	ETYY 3001
Parameters:	Load Capacity	1500Kg 3300lbs	3000Kg 66lbs
	Lowest Height(mm)	85	105
	Max. Height(mm)	860	870
	Table Dimensions(mm)	2750x800	2850x1000
Net Weight(kg):		695	785

Here's an overview of three types of electric lift tables: low-profile electric lift tables, "U" type electric lift tables, and standard electric lift tables. Each has its unique features and applications.

Low-Profile Electric Lift Table

Features

• Compact Design: Designed to fit under low-clearance areas, making it ideal for tight spaces.
• Electric Lift Mechanism: Allows for smooth and effortless lifting of loads.
• Adjustable Height: Can be raised and lowered to suit different working heights.
• High Stability: Often equipped with a wide base to ensure stability when lifting.

Benefits

• Accessibility: Great for loading and unloading from low surfaces.
• Ergonomic: Helps reduce strain on workers by providing a convenient working height.
• Versatile Use: Suitable for warehouses, factories, and workshops.

Applications

• Assembly Lines: Ideal for moving parts in production areas.
• Logistics: Useful for loading goods onto trucks or conveyors at low heights.

---

"U" Type Electric Lift Table

Features

• Unique "U" Shape Design: Provides larger surface area and stability for handling bulky items.
• Electric Lift System: Facilitates easy lifting with minimal manual effort.
• Adjustable Height: Offers flexibility for various tasks and user preferences.

Benefits

• Increased Load Capacity: Designed to handle heavier and larger items efficiently.
• Enhanced Stability: The "U" shape contributes to better balance, reducing the risk of tipping.
• Versatile Applications: Suitable for various industrial and commercial environments.

Applications

• Material Handling: Ideal for transporting large parts or machinery.
• Warehousing: Useful for organizing and moving items in storage areas.

---

Standard Electric Lift Table

Features

• Wide Range of Heights: Can be adjusted to various heights, accommodating different tasks.
• Electric Operation: Provides smooth and controlled lifting and lowering of loads.
• Sturdy Construction: Built to support a significant amount of weight safely.

Benefits

• Improved Efficiency: Reduces time and effort required for lifting and transporting items.
• Ergonomic Design: Minimizes physical strain on workers by allowing for optimal working heights.
• Versatile Use: Applicable in many industries, from manufacturing to retail.

Applications

• Assembly and Production: Ideal for lifting components during manufacturing processes.
• Retail Display: Can be used to position products at eye level for customers.

---

Summary

When choosing among these electric lift tables, consider the specific needs of your operation, such as space constraints, load types, and required lifting heights, to select the most suitable option. Each type provides unique advantages that can enhance efficiency and ergonomics in various settings.

If you have specific questions or need more details about a particular model or application, feel free to ask!
