Cylinder block surface grinding-milling machine 3M9735B

  • 3M9735B

Description

3M9735B

surface grinding-milling machine

3M9735B is Surface Grinding and Milling Machine for small and medium, large-size cylinder heads and blocks. This machine is accurate and wide use. It makes possible to solve mostly grinding jobs, and it is optimal and economic choice.3M9735B is characterized by automatic reciprocating movement of table which is electric motor ; the grinding head is operated by one of the main motor which directly controls the grinding wheel spindle and by one additional motor for up – down movement of grinding head . It has two different grinding procedures; with grinding wheel ; insert milling cutter.
Features

1.  700 rpm high velocity milling and step-less speed regulation for feeding by frequency conversion control, high smooth surface of machining , suitable for aluminum alloy cylinder body.
2.  1400 rpm high velocity grinding , precision feeder , suitable for cast-iron cylinder body.

Main specifications

Model

3M9735B×130

3M9735B×150

Working table size

1300 x500mm

1500x500mm

Max working length

1300 mm

1500 mm

Max. width of grinding

350 mm

350 mm

Max height of grinding

800 mm

800 mm

The vertical moving distance of grinding head

60 mm

60 mm

The vertical moving distance of spindle box

800 mm

800 mm

Spindle speed

1400/700 r/min

1400/700 r/min

Transverse moving speed of working table

40-900 mm/min

40-900 mm/min

Overall dimensions(L×W×H)

2800×1050×1700 mm

3050×1050×1700 mm

Packing dimensions(L×W×H)

3100×1200×1850 mm

3350×1200×1850 mm

N.W. / G.W.

2800 / 3100 kg

3000 / 3300 kg

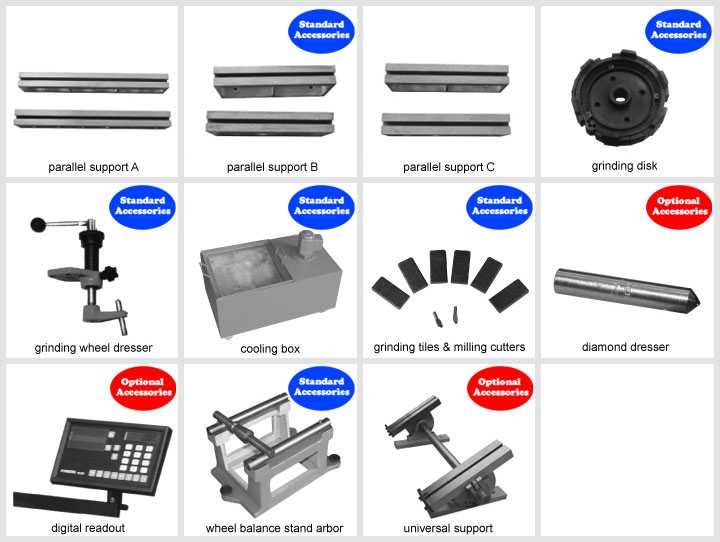

Accessories
