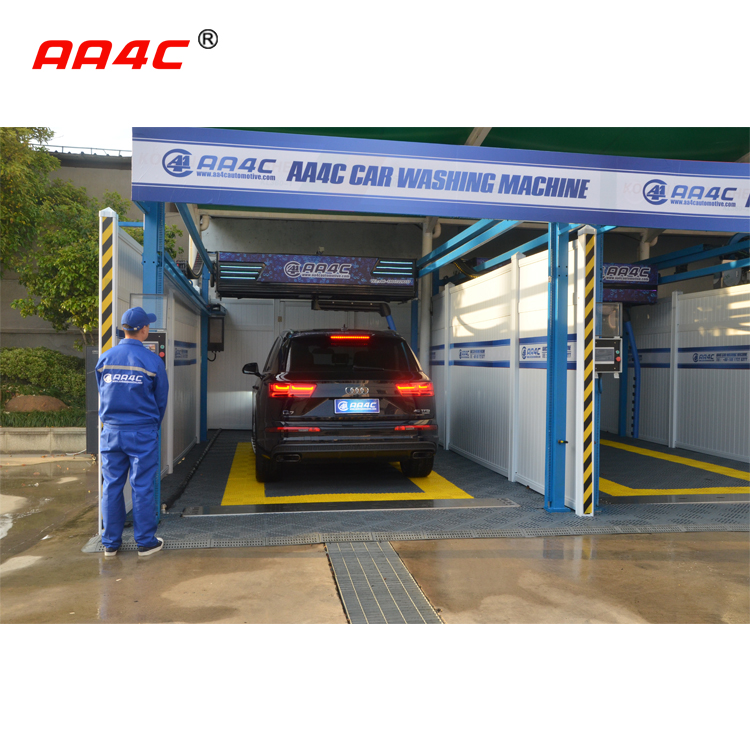

7 type arm touchless car washing machine , achieve a qualitative leap in washing machine industry with the concept
of the world's top touchless washing design, domineering appearance , fully
automated washing systems,smooth operation control.
配置表 Configuration table
机器尺寸(长、宽、高)
Main body size
3500mm*1200mm*900mm
安装尺寸(长、宽、高)
Installation dimension (length and breadth)
7500mm*3760mm*3300mm
电源要求
Power Requirement
三相380V/22Kw
380V 3ph,22kw

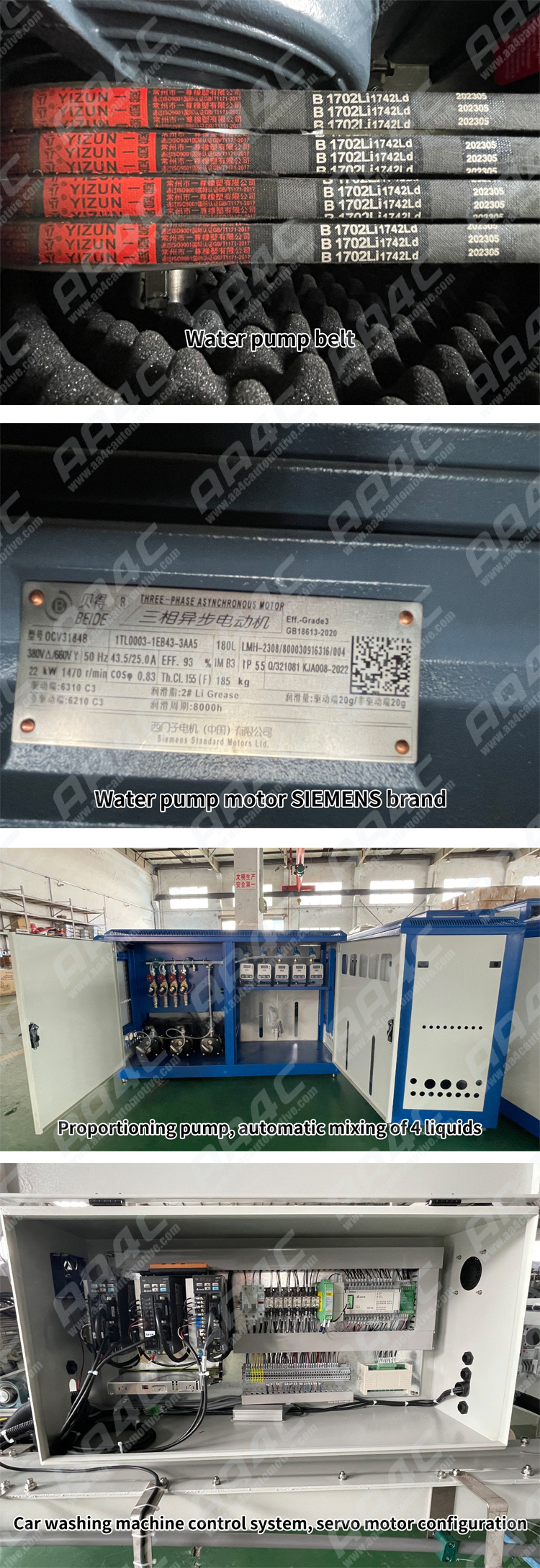

水泵电机功率
Pump motor power
德国西门子品牌
Germany's Siemen brand
风机电机功率
Fan motor power
德国西门子品牌

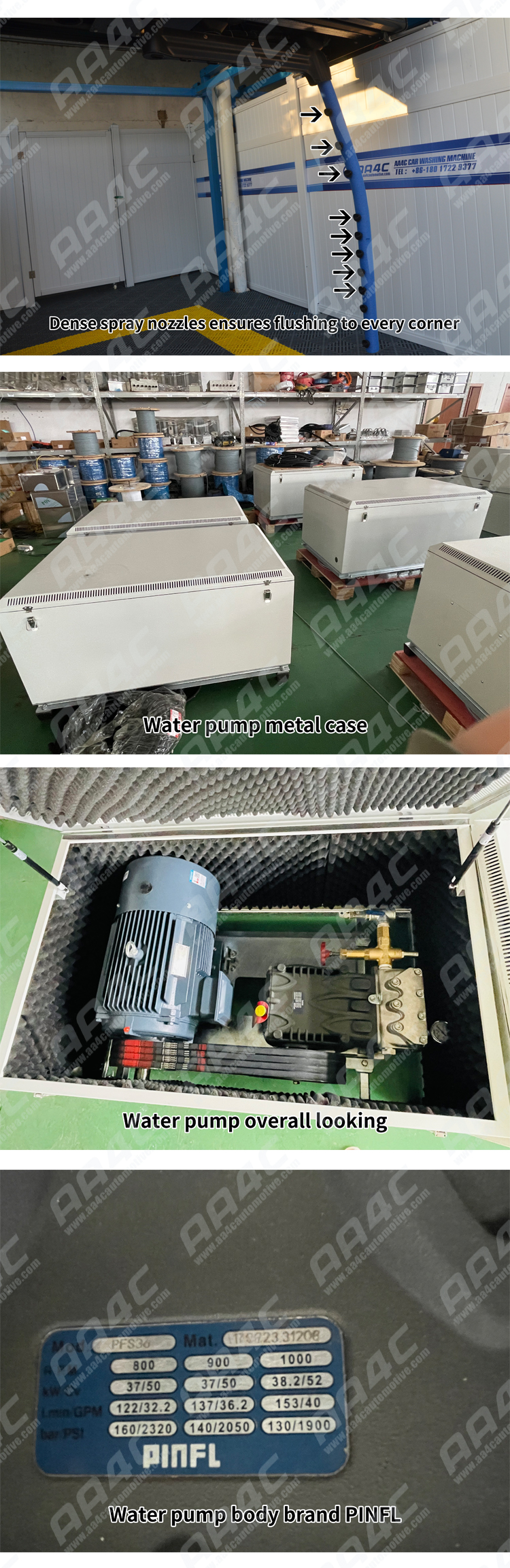

高压水泵
High pressure pumps
德国品牌/压力100Kg
Germany Brand / pressure100Kg
中央处理器CPU
嵌入式中央控制中心(PLC控制系统)
Embedded central control center (PLC control system)
人机界面HMI
彩色触摸屏Color touch screen
驱动系统
Drive System
无极变频调速器+数字步进驱动器
Stepless inverter + digital stepper drives
全自动配比系统
Automatic matching system
多种液体程序包 Multiple liquid packages
车身轮廓自动检测
Automatic detection of body contour
美国邦纳超声波+欧姆龙数字编码器
US Bonner ultrasonic +Omron digital encoder
耗水量
Water Consumption
每车90-150L
90-150L per vehicle
耗电量
Power consumption
每车0.5-1度
0.5-1 degrees per vehicle
自助引导停车系统
Self-guided parking system
✔

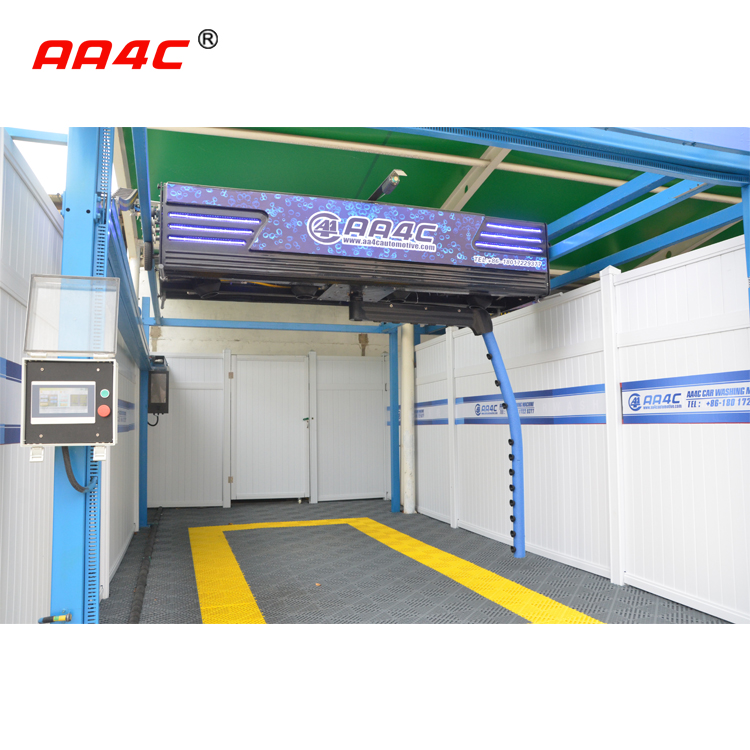

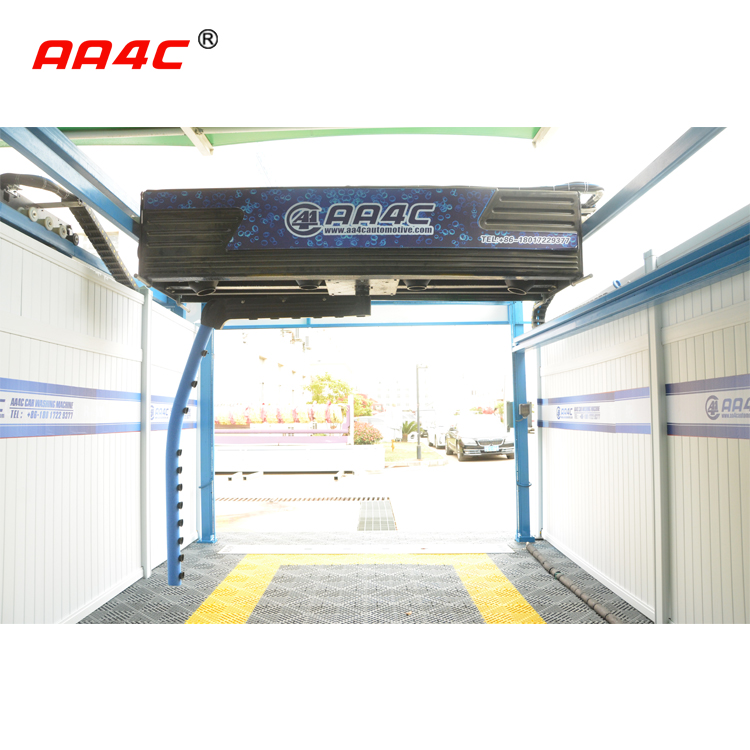

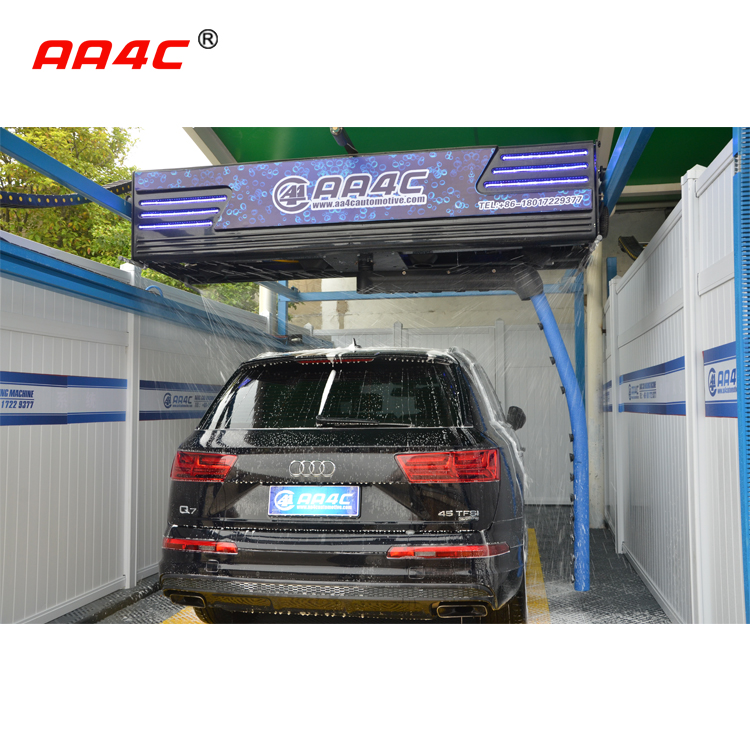

360度旋转式冲洗功能
360-degree rotating wash function
✔

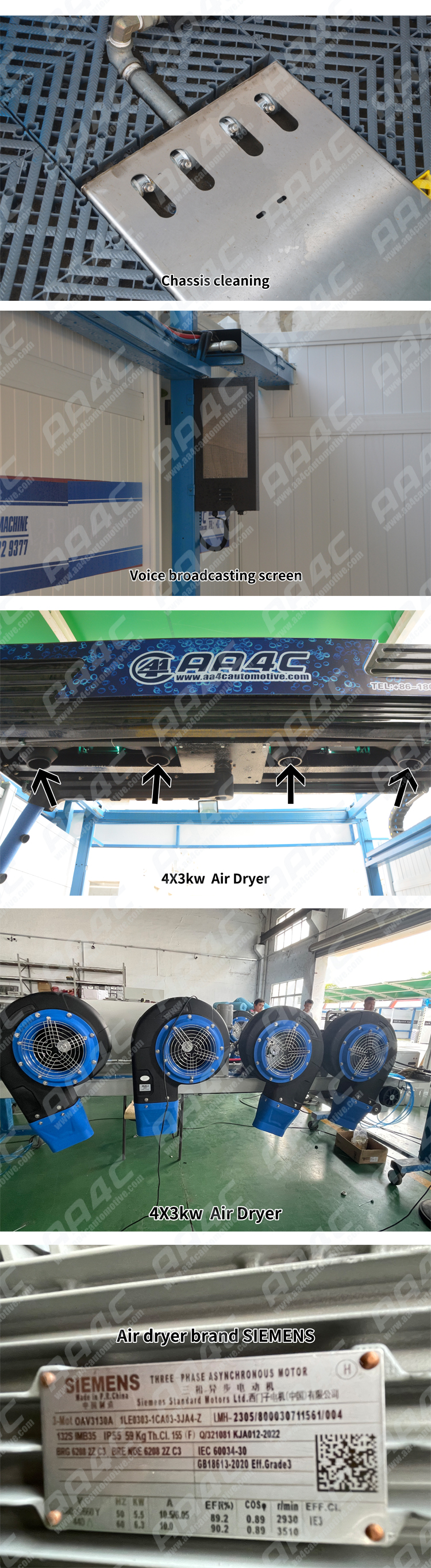

底盘冲洗功能
Chassis washing function
✔
轮胎冲洗功能
Tire washing function
✔

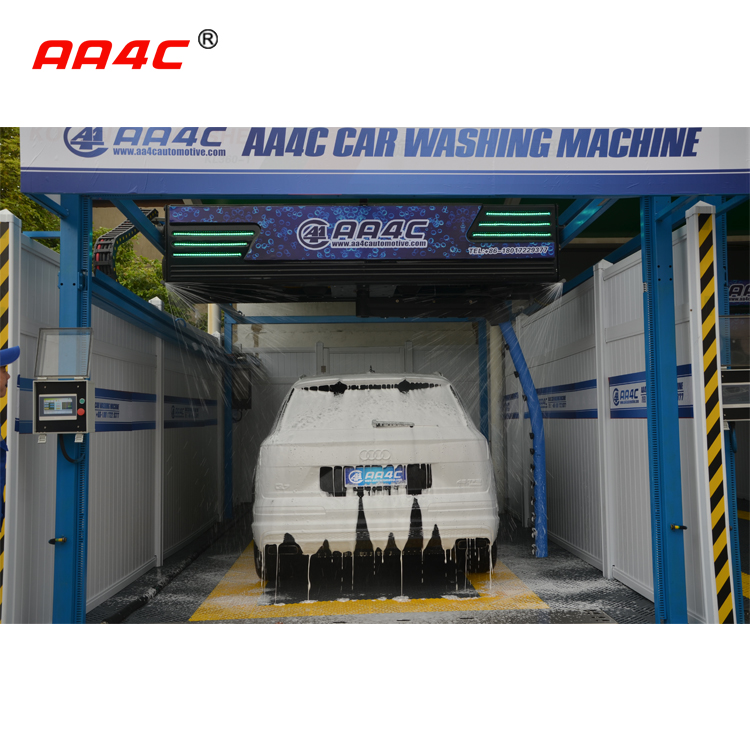

魔彩泡沫功能
Magic color bubble function pumps
✔
内嵌往复式风干功能
Embedded eciprocating air-dry function
✔
软水喷淋功能
Soft water spray function
✔
水蜡镀膜功能
Water wax coated function
✔
免擦拭洗车液功能
Free Wipe function washing liquid
✔
LED提示系统
LED indicating system
✔
语音提示系统
Voice Warning System
✔
洗车量计数功能
Washing quantity Counting function
✔
故障自检功能
Fault self-test function
✔
一键防冻系统
One key anti-freeze system
✔
C型钢构滑轨
C type Steel structure slide rail
✔
无线遥控控制系统
Wireless remote control system
✔
热镀锌框架
Hot dip galvanized frame
✔
推荐旋7单臂旗舰型的六大优势 Six advantages of 7
type arm touchless car washing machine ,
第一:设计理念先进,非常人性化Advanced
design concept, very human
1..360度旋转手臂,最大角度清洗车身,全面清洗盲区。
360 degrees
Rotating arm , clean the car body at the maximum Angle, clean the blind area thoroughly
2.语音播报、LED屏指示,引导车辆停放到合适的清洗位置后,再启动。否则,机器不运转。
Voice broadcast, LED screen instruction, guide vehicles to appropriate cleaning
position, then start. Otherwise, the machine will not work.
3.远程遥控器。每台机器都配备远程遥控器,可以执行远距离一键式操作,方便简单易操作。
Remote control. Each machine is equipped with remote
control, which can perform remote one-key operation, convenient and easy to
operate.
4.车头车尾反复冲洗。对比较脏的车前引擎盖和车尾进行反复冲洗。
Rinse the front and rear of the car repeatedly. Wash the
dirty front hood and rear of the car repeatedly
5.自动识别反光镜位置并进行冲洗。
Automatically identify the reflector position and flush .
第二:自动检测功能强大,提前预警,安全可靠 Powerful automatic detection, early warning, safe and
reliable
7 type arm touchless car washing machine , USES multiple intelligent ultrasonic detection
systems to automatically detect the length and width of the vehicle, adjust
according to the detection data. It always keeps a distance of 20-25cm from
the machine body. Before operation, all
the sensing, motion and control modules will be scanned for safety detection,
hidden dangers will be found in advance. Power supply, undervoltage,
overvoltage and overload will be monitored in real time. High-power motor also
adopts advanced thermal detection technology.
第三:360度旋转手臂,洗一辆车最快只需100秒,充分降低洗车成本低。
360 degrees Rotating arm, wash a car as soon as 100
seconds, fully reduce the washing cost
The 7-arm flagship machine, uses the same nozzle to spray
and spray various car wash liquid, with different pipes, automatically
exchange, and reasonable design. It can liquefy a variety of car shampoo into mist, evenly spray to various parts of the body .Through the most advanced
high-precision ratio technology, accurate measurement system , it can achieve
better results with less dosage.
第四:洗车程序分为标准洗和精护洗。
Car
wash procedures are divided into standard cleaning and Fine armor cleaning.
·
Fine armor to wash: The cleaning
and glazing is completed synchronously, at the same time of cleaning, the magic
color glazing is completed synchronously to make the paint surface color more
bright and beautiful. Besides, added a kind of crystal coating wax water, it achieves the function of super protective
paint, acid rain prevention, pollution prevention, uv erosion prevention
Four
high pressure fans, streamlined circular tuyere, greatly reduce the wind
pressure loss and gather into long-distance high pressure airflow, direct to
the body surface, for both tall SUV or low body sports car, can achieve rapid
air drying.
Machines
are very intelligent . Contains machine automatic maintenance function, breakdown
self check function (abnormal
conditions occures, fault code all recorded on the device, query at any time) . Counting function (customers can enter the
management authorization password to query the total number
of car washes , easy to manage) , Timing
function (By timing the car washing steps , let the customer know the status of
the equipment)
