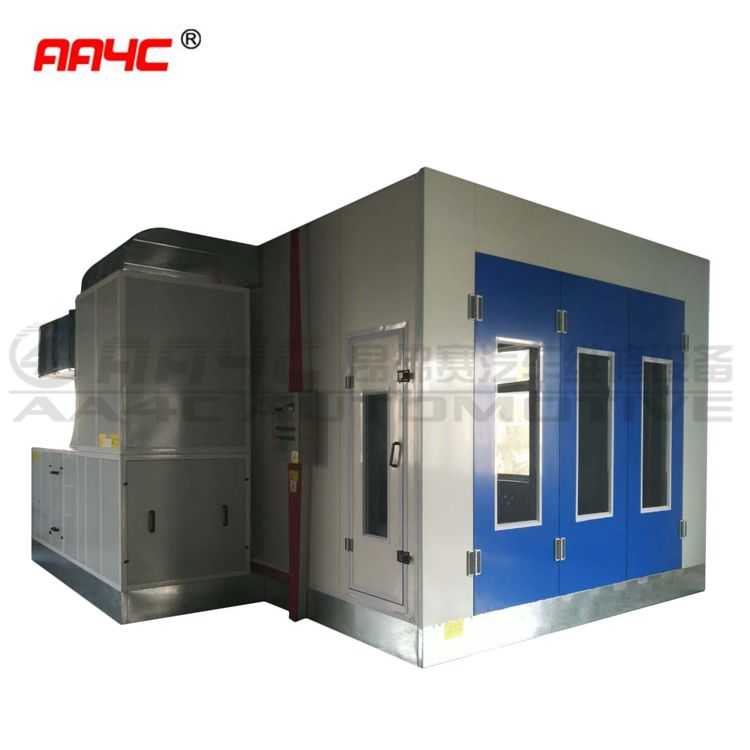

Spray Booth AA-SB604(6.9m*4m*2.8m)

  • AA-SB604

Description

Features:

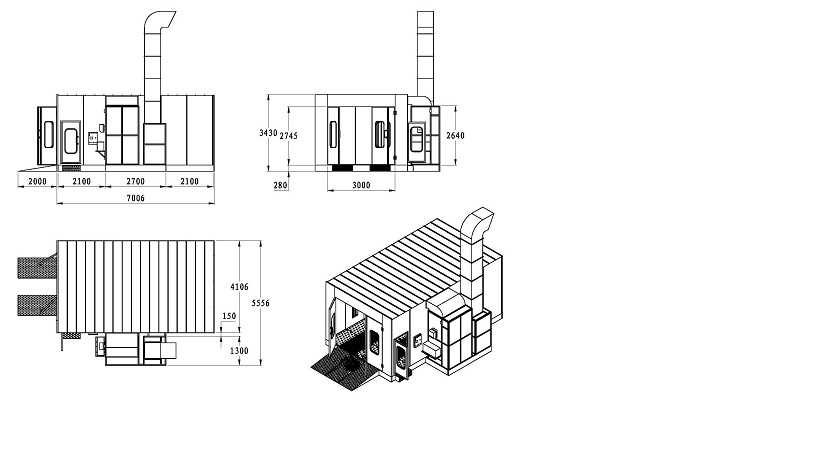

◆Outside dimension:7000×5560×3430mm(L×W×H);
◆Inside dimension: 6900×4000×2800mm(L×W×H);

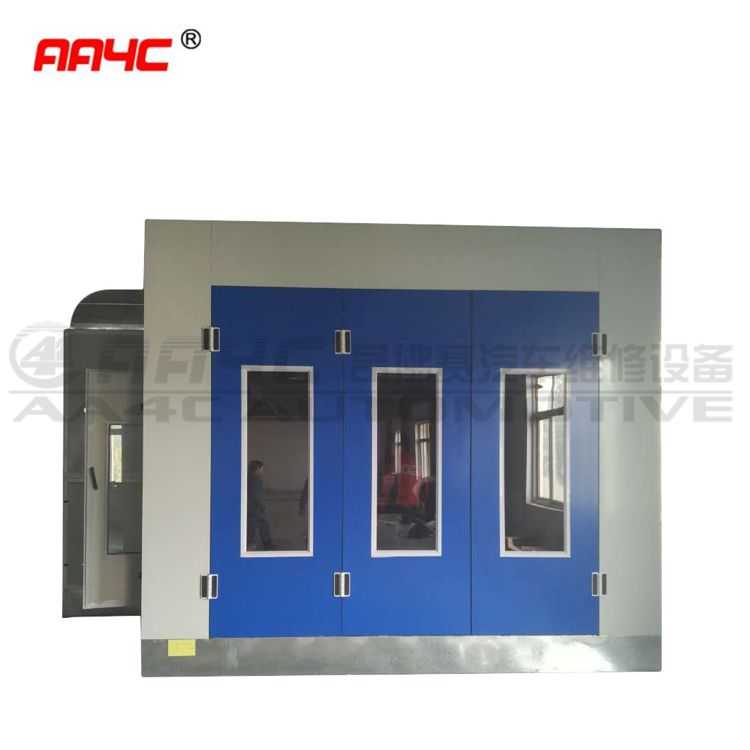

◆Front door dimension: 3000×2700mm(W×H);
◆Working door dimension: 800×2000mm(W×H);
Cabin system:
1) Wall panel: 50mm thick flame-resistant and heat-preserving EPS panel; 0.426 thick colored steel.
Roof panel: galvanized sheet;

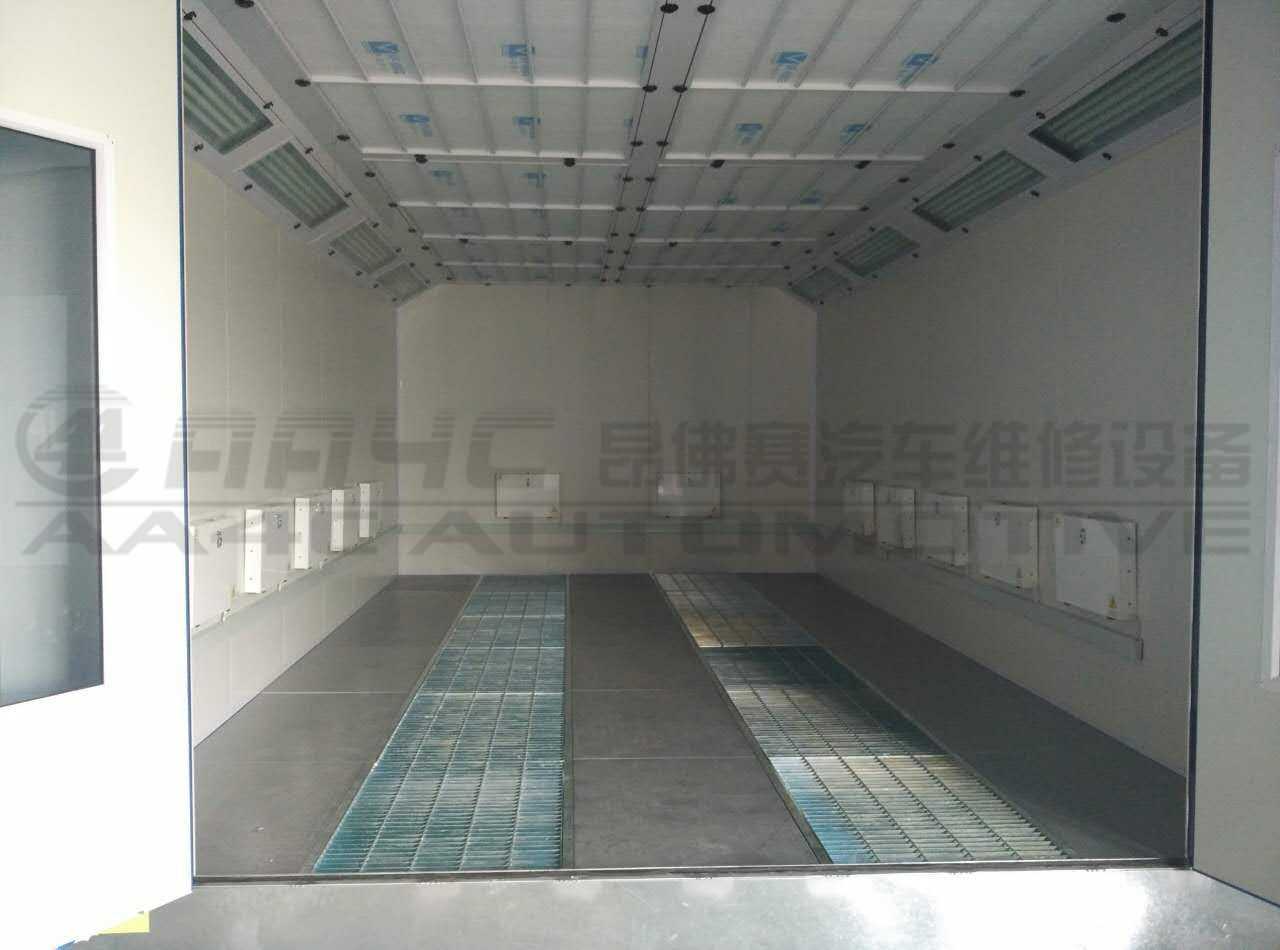

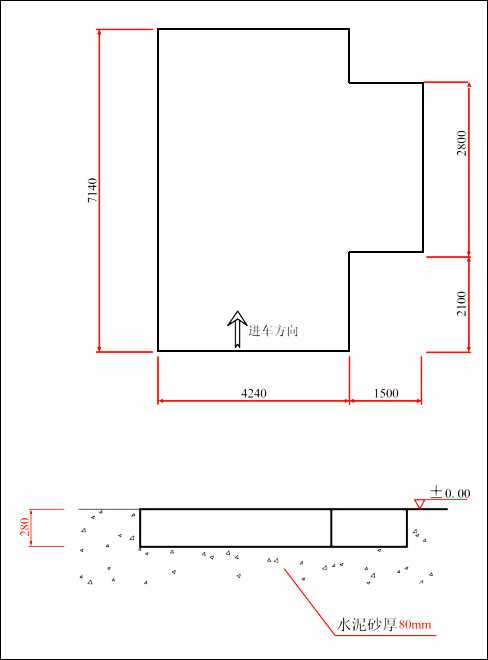

2) Basement: two line grilles, three diamond plates; complete ramps; height is 280mm;
Air circulation system:

Inhaling Ventilator

Model: YDW-4.5AL1

Exhaust Ventilator

Model: YDW-5.6S

Blower Capacity: 24000m3/h

Blower Capacity: 15000m3/h

Pressure: 815Pa

Pressure: 810Pa

Rolling Speed: 900rpm

Rolling Speed: 900rpm

Power: 4kw

Power: 5.5kw

Quantity: 2 sets

Quantity: 1 set

One set automatic damper, 10N actuator

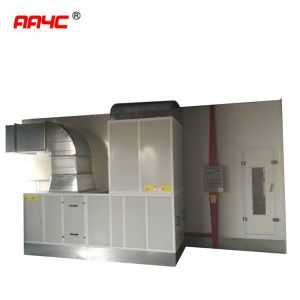

Generator: slid upward side intake air; rare upward side exhaust; quadrate steel frame;
Air purification system: Pre-filter, high efficiency filter (ceiling filter), floor filter, active carbon;
Heat system: RIELLO G20 diesel burner (one stage), heating capacity is 200000Kcal/h, electric damper from
spraying to baking cycle; oil consumption 4~6L/set; the heating time is 5~7 minutes;
Lighting system: ≥1000Lux
◆Ceiling Lights: 8Groupsx4Pcs=32Pcs x36W
◆Side Lights: 8Groupsx2Pcs=16Pcs x20W
◆Glass: all glass is clear tempered glass.
Control box: Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting,
failure indicator, emergency stop, temperature controller, temperature limit controller, emergency stop,
breakdown alarm;
Total power: 16 KW
